Spring 2024

Topology studies the

*shape*of mathematical objectsUnlike Geometry, it is not concerned with sizes, angles, nor coordinates

It is concerned with the

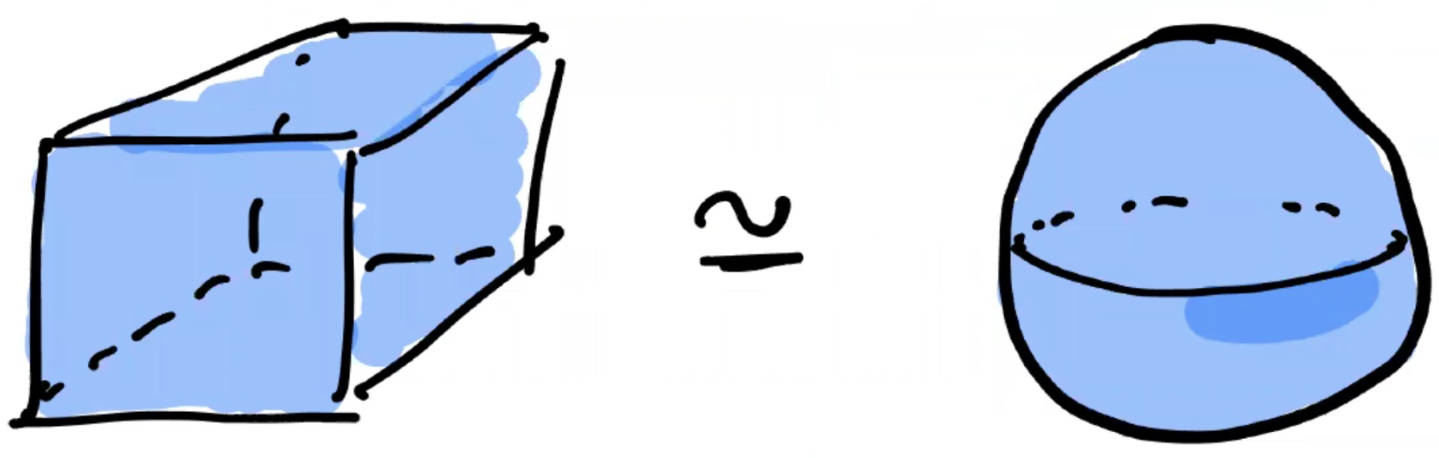

*connectivity*(or lack of) between different “parts” of the objectTwo objects are topologically equivalent if we can transform one into another with continuous transformations (without tearing the object)

Since topology analyzes the shape while discarding possibly unnecessary information, it is frequently used for analyzing high-dimensional objects

Topological data analysis (TDA) uses techniques from topology to analyze datasets

To do this, it is necessary to construct topological representations of the dataset’s points

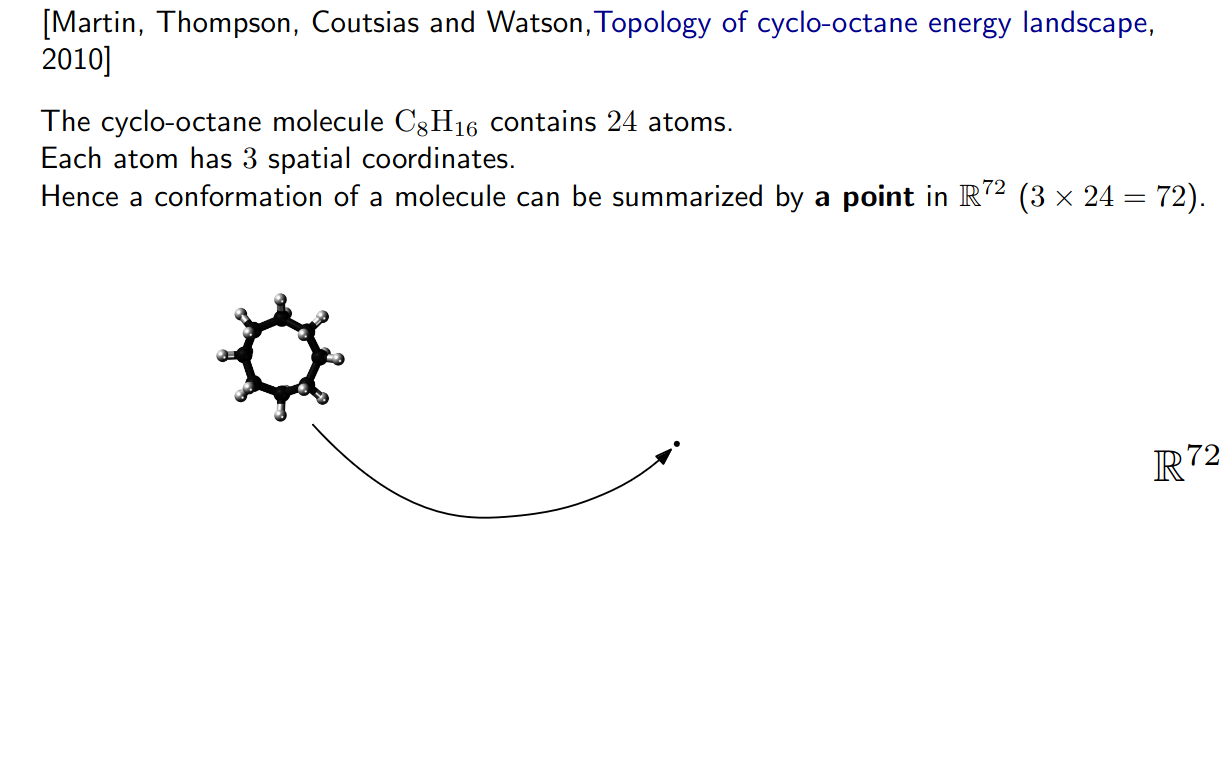

Slides based on Raphaël Tinarrage’s From Algebraic Topology to Data Analysis

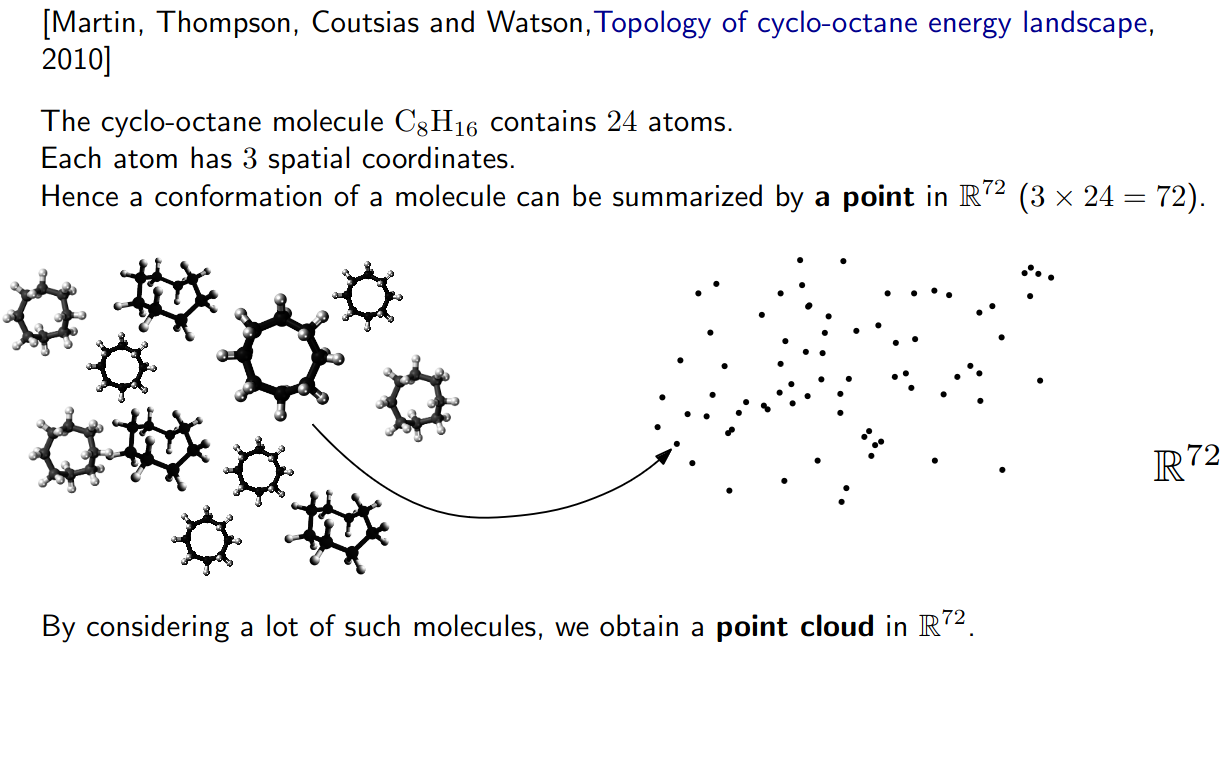

Slides based on Raphaël Tinarrage’s From Algebraic Topology to Data Analysis

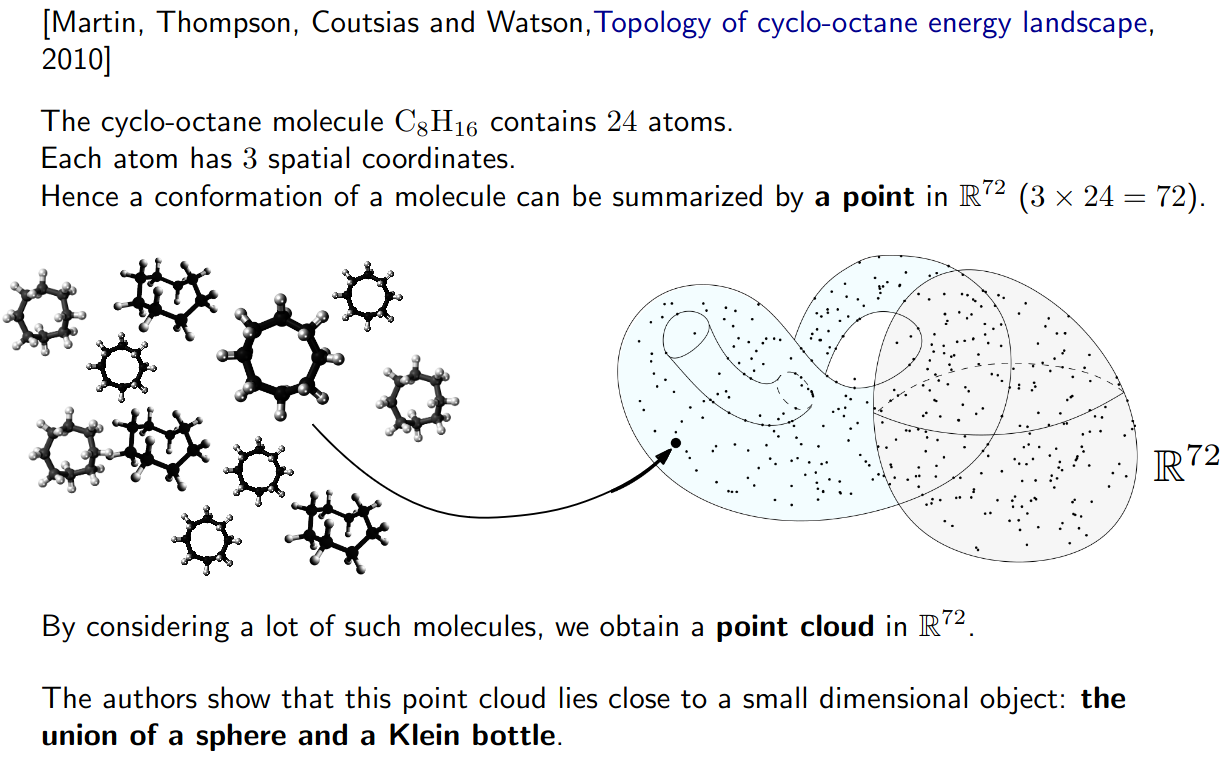

Slides based on Raphaël Tinarrage’s From Algebraic Topology to Data Analysis

Slides based on Raphaël Tinarrage’s From Algebraic Topology to Data Analysis

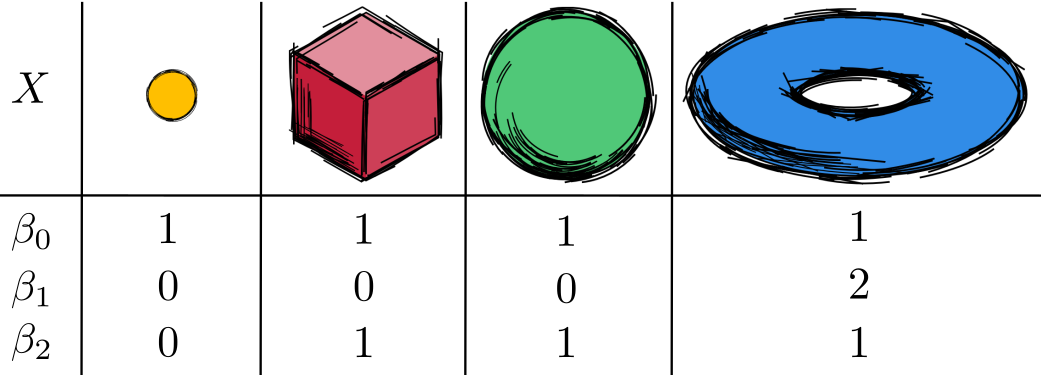

The \(d^{th}\) Betti number counts the number of \(d\)-dimensional holes. It can be used to distinguish between spaces.

\(\beta_0(X)\) Connected components in X

\(\beta_1(X)\) Tunnels or holes in X

\(\beta_2(X)\) Voids in X

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

What is a peak?

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

First idea: Using local maximum

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

Second idea: flooding

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

Second idea: flooding

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

Second idea: flooding

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

Second idea: flooding

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

Second idea: flooding

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

Second idea: flooding

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

What is a peak?

Second idea: flooding

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

The island \(I\) appears at sea level \(b\) (its **birth time**)…

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

The island \(I\) appears at sea level \(b\) (its **birth time**)…

and disapears at seas level \(d\) (its **death time**) at local maximum \(x\).

The point \(x\) is a peak if the **persistence**\(:= d-b\) of the island \(I\) is larger than \(91\)m (=\(300\)ft).

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

The persistence diagram (PD) of the elevation function is the collection of the points \((b,d)\), where \((b,d)\) corresponds to the birth/death of an island.

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

The persistence diagram (PD) of the elevation function is the collection of the points \((b,d)\), where \((b,d)\) corresponds to the birth/death of an island.

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

If we have more than one persistence diagram, how do we measure the distance between them?

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

We place both in the same diagram

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

We place both in the same diagram

Get the optimal pair matching between the points (including the diagonal)

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

We place both in the same diagram

Get the optimal pair matching between the points (including the diagonal)

The **bottleneck distance** between them will be the largest pair distance

Slides based on Vincent Divol’s CDS Lunch Seminar presentation

**Definition**

We call a non-empty family of sets \(K\) with a collection of non-empty subsets \(S\) an *abstract simplicial complex* if:

- \(\{v\} \in S\) for all \(v \in K\)
- If \(\sigma \in S\) and \(\tau \subseteq \sigma\), then \(\tau \in K\).

**Terminology**

The elements of a simplicial complex \(K\) are called *simplices*. A \(k\)-simplex consists of \(k+1\) verticies.

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Example**

Simplicial complexes can be decomposed into their skeletons, which only contain simplices of a certain dimension.

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Example**

Simplicial complexes can be decomposed into their skeletons, which only contain simplices of a certain dimension.

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Example**

Simplicial complexes can be decomposed into their skeletons, which only contain simplices of a certain dimension.

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Example**

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Non-example**

This is *not* a simplicial complex because some higher-dimensional simplices do not intersect in a lower dimensional one!

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Example**

Notice that \(K\) does not contain the 2-simplex \(\{a,b,c\}\)

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Strategy 1: Triangulation**

Constructing the data’s simplicial complex

**Definition**

Given a set of points \(\mathcal{X} = \{x_1,\dots,x_n\}\) and a metric \(dist\) (such as the Euclidean distance), pick a threshold \(\epsilon\) and build the Vietoris-Rips complex \(\mathcal{V}_\epsilon\) defined as:

\[\mathcal{V}_\epsilon := \{\sigma \subseteq \mathcal{X} | \forall u,v \in \sigma : dist(u,v) \leq \epsilon\}\]

Equivalently, \(\mathcal{V}_\epsilon\) contains all simplices whose *diameter* is less than or equal to \(\epsilon\).

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Example**

Draw Euclidean balls (circles) of diameter \(\epsilon\) and create a \(k\)-simplex \(\sigma\) for each subset of \(k+1\) points that intersect pairwise.

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

This construction dates back to a 1927 article by Leopold Vietoris\(^1\)

A 2010 paper by Afra Zomorodian\(^2\) describes several construction algorithms

The basic idea is to build higher-dimensional simplices inductively from lower-dimensional ones

In the worst case, the Vietoris-Rips complex will contain all \(2^n\) subsets of its underluing point clous \(\mathcal{X}\)!

\(^1\) Vietoris, Leopold. “Über den höheren Zusammenhang kompakter Räume und eine Klasse von zusammenhangstreuen Abbildungen.” Mathematische Annalen 97.1 (1927): 454-472.

\(^2\) Zomorodian, Afra. “Fast construction of the Vietoris-Rips complex.” Computers & Graphics 34.3 (2010): 263-271.

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Example**

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

How to pick \(\epsilon\)?

There might not be one ‘correct’ value for \(\epsilon\).

Computationally inefficient

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Intuition:** Go through all scales and track the topological features

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Intuition:** Go through all scales and track the topological features

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Intuition:** Go through all scales and track the topological features

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Intuition:** Go through all scales and track the topological features

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Intuition:** Go through all scales and track the topological features

Slides based on Bastian Rieck’s Topological Data Analysis for Machine Learning

**Strategy 2: Data skeleton**

The Mapper Algortihm

We start in “Math World”, where

- We draw the data as a smooth manifold
- Functions that appear are smooth or continuous

We will not need either of these assumptions once we are in the “Data World”.

Even more importantly, data in the real world is **never** like this.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We get “easy” understanding of the localizations of quantities of interest.

- Lenses inform us where in the space to look for phenomena.
- For easy localizations many different lenses will be informative.
- For hard (= geometrically distributed) localizations we have to be more careful. But even then, we frequently get incremental knowledge from a poorly chosen lens.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

We need to adjust the “Math World” view to bring the algorithm into the “Data World”

- We replace points with open sets in the range of the lens
- We replace “connected component of the inverse image” with “clusters in the inverse image”
- We connect clusters (nodes) with an edge if they share points in common.

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

Slides based on Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

For more information about the persistence diagram, see Vincent Divol’s CDS Lunch Seminar presentation “Quantifying the topology of datasets using Topological Data Analysis”

For more information about the mapper algorithm, see Anthony Bak’s Stanford Seminar - Topological Data Analysis presentation

To learn more about TDA for Machine Learning, see Bastian Rieck’s Topological Data Analysis for Machine Learning tutorial (around 4 hours total)

For a course in TDA, see Raphaël Tinarrage’s Topological Data Analysis with Persistent Homology summer course

Some books of interest:

Edelsbrunner, Herbert, and John L. Harer. Computational topology: an introduction. American Mathematical Society, 2022.

Dey, Tamal Krishna, and Yusu Wang. Computational topology for data analysis. Cambridge University Press, 2022.

Carlsson, Gunnar, and Mikael Vejdemo-Johansson. Topological data analysis with applications. Cambridge University Press, 2021.

Introductory paper:

- Chazal, Frédéric, and Bertrand Michel. “An introduction to topological data analysis: fundamental and practical aspects for data scientists.” Frontiers in artificial intelligence 4 (2021): 108.

TDA in Python:

- For overall TDA data structures and algorithms: GUDHI (both C++ and Python) or scikit-tda
- For a faster implementation of the Vietoris-Rips: Ripser.py
- For a faster implementation of the Mapper: KeplerMapper

For an open-source library and software collection for topological data analysis and visualization: Topology ToolKit

For more examples of TDA aplications:

- DONUT - Database of Original & Non-Theoretical Uses of Topology
- Applied Algebraic Topology Research Network seminar series
