Today we will be a exploring the following topics:
How to set up a local instance of Observable via Framework
Main Lab Activities:
Examples: Observable & Interactions
Concept: Persistent Variables in JavaScript
Review: Observable Inputs Library
Application #1: Changing Visible Data

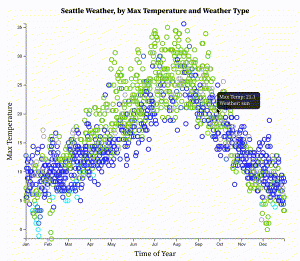

Application #2: Mouse Tooltips

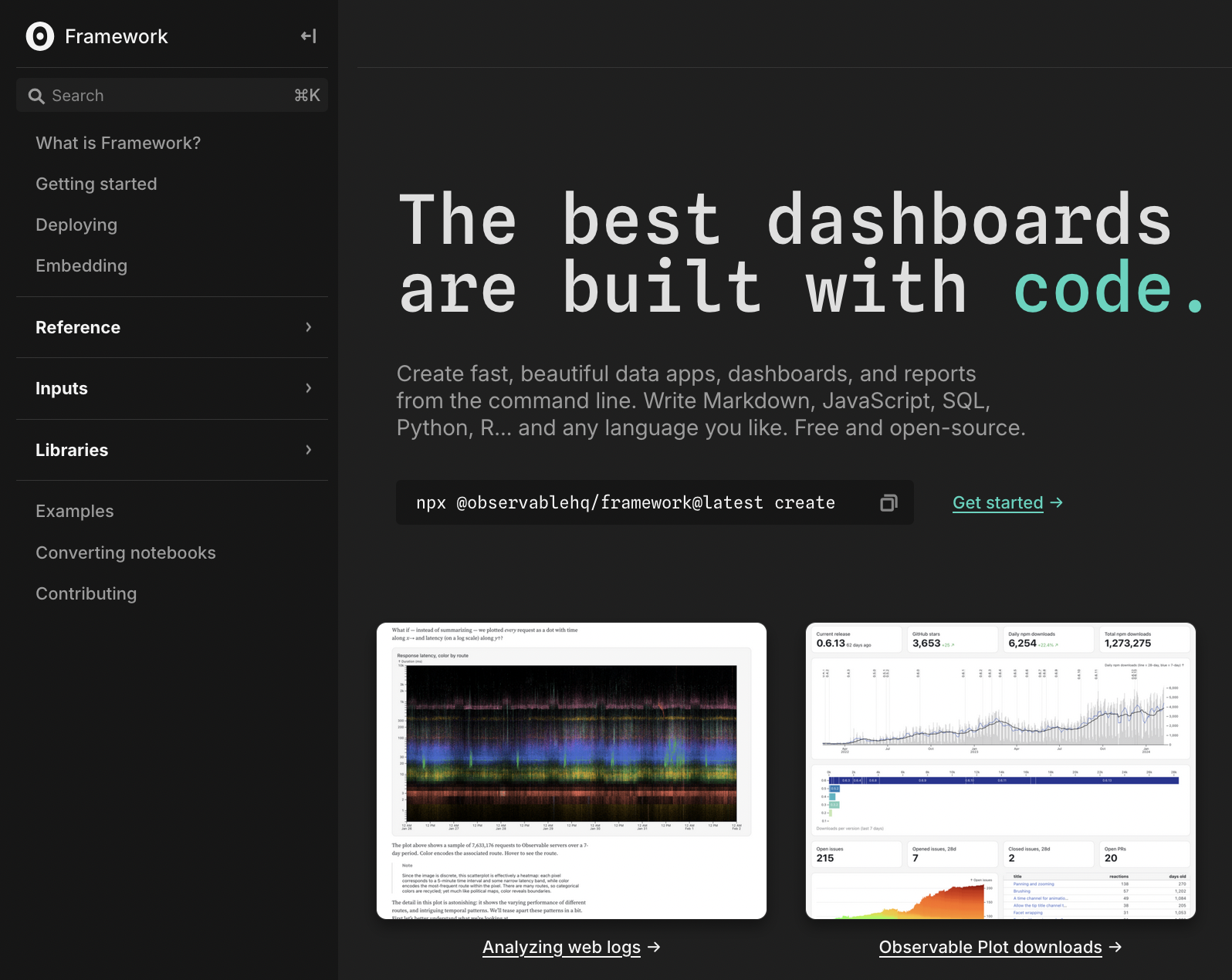

Running Observable Locally: “Framework”
In prep for your group projects, it would be ideal to work on your own local instances of Observable…ness. The same group behind Observable also has released Framework, a JavaScript ecosystem for generating dashboards and web apps with Observable functionality.
We will focus a bit on making sure you are ready with a Framework project that you can upload to Github. Make sure to open the first notebook, Local Observable Frameworks, and follow the instructions.
[Note]: Framework is one of many options you can use for your project. We’re introducing it because it’s the closest to the Observable notebooks we’ve generated thus far.
Open a new shell (in VS Code, for example) and paste + run the command. This will install the latest long-term support version of Node.js:
pnpm env use --global lts
Creating a Framework Project
Open a terminal window (either Terminal.app on MacOS, Command Prompt on Windows, or VS Code on either MacOS or Windows).
Navigate to any folder or location where you will be comfortable creating a new folder (e.g. the Documents/ directory on MacOS or the Desktop/ on Windows). You can navigate to that location using the following command:
cd<PATH>/<TO>/<LOCATION>
Paste and run the command:
pnpm dlx @observablehq/framework@latest create
New instructions will be prompted from you in the terminal window. Answer all the directions that appear. The defaults are fine, but when the instructions ask to “Install dependencies” you must pick “No”.
At this point, Framework will create a brand new folder for you with all the code necessary to run a Framework project locally. If you ran with defaults, then the new folder will be titled “hello-framework”.
Installing Dependencies, Running a Dev Server
Installing Dependencies
Navigate into your new folder by using the cd command. Once inside, install dependencies by running the following command:
pnpm i
Running a Development Server
Once you’ve installed your dependencies, we are ready to run a local server that we can use for development. Run the following command inside your project folder:
pnpm dev
Your Framework webpage should then be loaded into a localhost server that you can view via the browser. The Framework architecture tracks any changes to any files and updates in real-time every time you save changes in a file.
Version Control via Github
After these steps, you should be able to push changes to your Github repository and pull them when needed.
Online, create an empty Github repository and feel free to name it anything you want (though generally you should try to match project names when possible).
Locally (via command line or via Github tool), add and commit all files in your project window.
Set the branch to “main”, add a new remote origin, and push your changes. The 3 commands to do so are provided below, as an example:
[Note]: Whenever you clone your repo to another folder or device, you must install dependencies again.
Framework Setup: Command Line Summary
# Step 1: Install pnpm, for MacOS or Windowscurl-fsSL https://get.pnpm.io/install.sh |sh-Invoke-WebRequest https://get.pnpm.io/install.ps1 -UseBasicParsing|Invoke-Expression# Step 2: Install _Node.js_pnpm env use --global lts# Step 3: Create a _Framework_ Projectpnpm dlx @observablehq/framework@latest create# Step 4: Install Dependencies, run a dev serverpnpm ipnpm dev# Step 5: Connecting an Empty Github Repogit add -Agit commit -m"first commit"git branch -M maingit remote add origin git@github.com:<USERNAME>/<PROJECT_NAME>.gitgit push -u origin main
How Framework Works
General Operations:
Framework generates webpages from Markdown files.
Markdown files can mix and combine Markdown syntax, HTML, and JavaScript.
Helper functions can be written in separate scripts and imported into Markdown files.
NPM and Observable modules can be imported.
Best Practices
Try to keep most dev files (major scripts, datasets, etc.) inside of the src/ folder.
Avoid dashboard rot by knowing beforehand what to create (i.e. a script, a database, a notebook) and keeping efficient/accessible/interactive design practices in mind.
Let’s Run a Live Demo!
Lab: Interactables
We have a second notebook for today’s lab, which further elaborates on some interactable elements.
{ replay;// ....const circle = svg.append("circle").attr("r",10).attr("cx",25).attr("cy",25).attr("fill","steelblue").call(reveal);// Event Handlingreturn svg.node();}
// Daisy-change of events to this circlereveal = circle => { circle.interrupt() // 1. Stop previous animation.attr("cx",25) // 2. Place at origin (25,25).attr("cy",25).transition() // 3. Start a transition.duration(1500) // 4. Run for 1.5sec.attr("cx",175) // 5. Set new pos (175,175).attr("cy",175);}
General Structure for Interactables
A way to manipulate the data (e.g. a button, a mouse event).
Functions to handle changes (e.g. an event handler function).

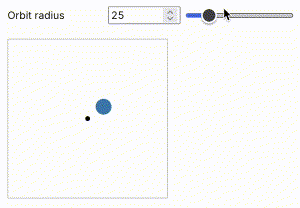

// Create two PERSISTENT variables that will be used across multiple functions within this code block.let angle =0;// Relative to +xconst speed =0.02;// degrees per frame// Event Handler that runs every frame. Animates the cirlcefunctionanimate() {// Update angle since it's a new frame angle += speed;// We grab the value set by our slider variable at this current frameconst r = viewof radius.value;// Modify the x and y positions of our orbiting circle, mathematicallyconst x = pivot.x+ r *Math.cos(angle);const y = pivot.y+ r *Math.sin(angle); orbit.attr("cx", x).attr("cy", y);// This is a special DOM function that calls `animate()` again when the next frame// of the window is updated. So `animate()` will run at every frame.requestAnimationFrame(animate);}// Call `animate()` to get things rolling when this code block runsanimate();
General Structure for Interactables
A way to manipulate the data (e.g. a button, a mouse event).
Functions to handle changes (e.g. an event handler function).
A connection between (1) and (2).
// Mouse event handlersconst onmousemove = (event) => {const [x, y] = d3.pointer(event);// Grab the mouse position vLine // Modify the position of our vertical line.attr("x1", x).attr("x2", x).style("visibility","visible");// And make it visbile hLine // Same with the horiontal line..attr("y1", y).attr("y2", y).style("visibility","visible"); text.text(`x: ${x.toFixed(1)}, y: ${y.toFixed(1)}`);// We modify the coordinates text. };const onmouseleave = (event) => { vLine.style("visibility","hidden");// Make the vertical and horizontal lines invisible hLine.style("visibility","hidden"); text.text("");// We make the text empty. };// Connect events to handlers. svg.on("mousemove", onmousemove); svg.on("mouseleave", onmouseleave);
Persistence in JavaScript
Persistent variables are those that are maintained and are referenced across multiple components, functions, etc. In JavaScript, variables remain persistent within the context they are defined.
Example #2:
let angle =0;// Relative to +xconst speed =0.02;// degrees per frame
Example #3:
// We must generate our crosshair lines pre-emptively as elements of our svg.// We create the vertical line, with some stylingconst vLine = svg.append("line")// ...// We create a horizontal line, with some stylingconst hLine = svg.append("line")// ...// Similar to the crosshair lines, we also pre-generate a text display showing the mouse coordinates.const text = svg.append("text")// ...
