Color Theory and D3 Scales

CS-GY 6313 - Fall 2025

Claudio Silva

NYU Tandon School of Engineering

2025-10-03

Color Theory and D3 Scales

Today’s Journey

Biology/Physics → Perception Theory → Design Principles → D3 Implementation → Best Practices

Part 1: Color Theory

• Physics and physiology of color
• How humans perceive color
• Color spaces and models
• Perceptual principles

Part 2: D3 Implementation

• Color scales in D3
• Sequential, diverging, categorical
• Interpolation methods
• Accessibility and best practices

This lecture bridges the gap between the science of color perception and practical implementation in D3. We follow a logical progression: First understanding the biology and physics (WHY colors work the way they do), then perception theory (HOW humans process color), then design principles (WHAT makes effective color choices), then D3 implementation (HOW to code it), and finally best practices (WHEN to use each approach). This foundation is crucial - without understanding how humans perceive color, you’ll make poor design decisions.

Color in Nature

Start with how color evolved in nature for communication and survival. Animals use color for warning signals, mating displays, and camouflage. This sets the stage for understanding that color perception is biological and varies across species - humans see differently than birds or bees.

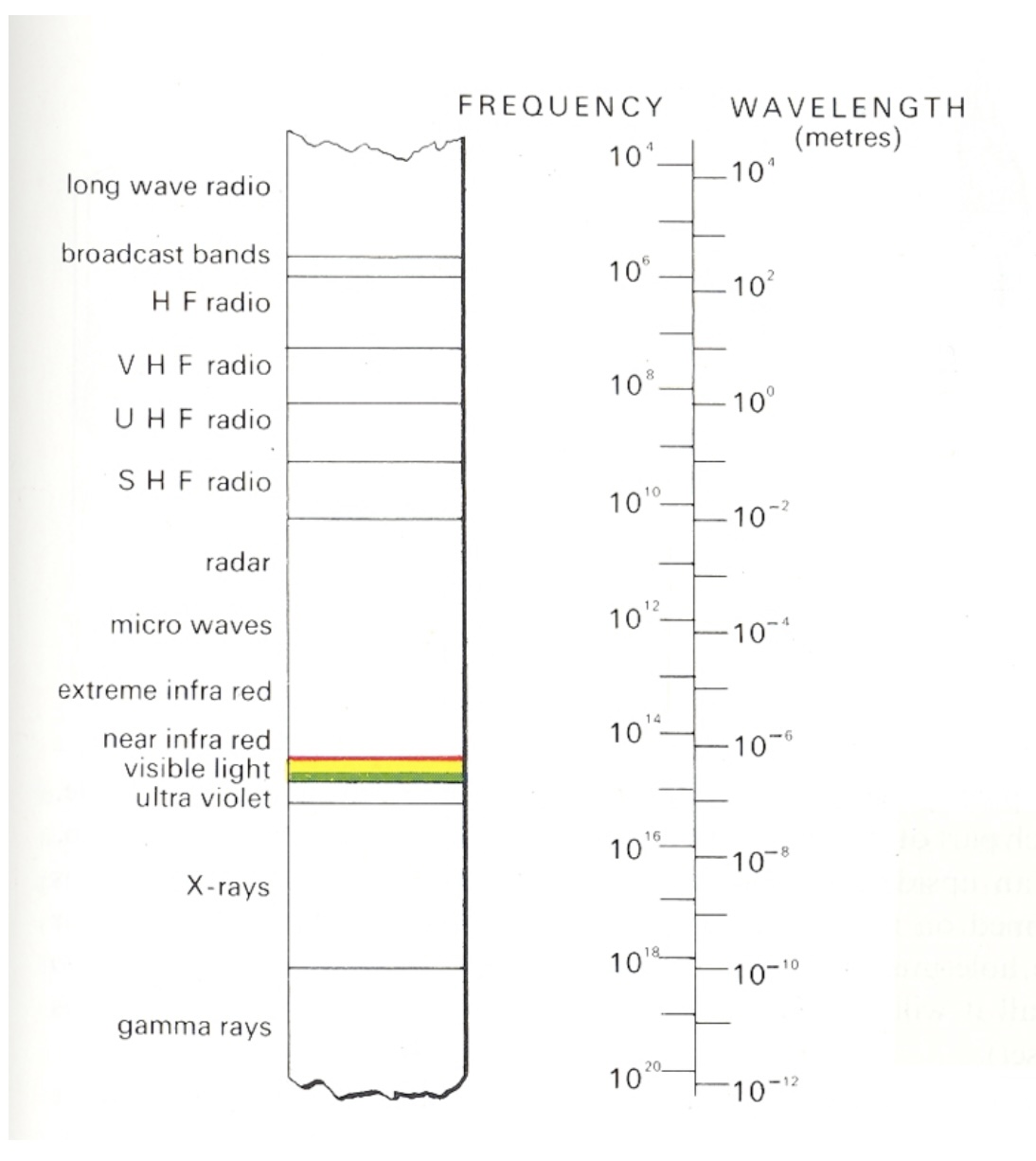

The Visible Spectrum

Humans perceive wavelengths from approximately 390-700nm

Explain that the limited range (390–700nm) is due to environmental factors: shorter wavelengths (UV) are highly scattered by Earth’s atmosphere, and longer wavelengths (IR) are absorbed by water and lead to molecular vibration rather than electronic excitation. Our peak sensitivity is in the green-yellow region (~555nm), which corresponds to the peak of the solar spectrum at Earth’s surface. This is no accident - evolution optimized our vision for the available light in our environment.

Properties of Light

• Visible range: 390-700nm

• Luminance has huge dynamic range:

  • 0.00003 — Moonless overcast night sky
  • 30 — Sky on overcast day
  • 3,000 — Sky on clear day
  • 16,000 — Snowy ground in full sunlight

• Colors result from spectral curves:

  • Dominant wavelength → Hue
  • Brightness → Lightness
  • Purity → Saturation

Key insight: Our eyes handle an enormous dynamic range (100,000:1) through adaptation. This is why absolute luminance values aren’t as important as relative contrasts in visualization. The three properties (hue, lightness, saturation) form the basis of the HLS color model, which is more intuitive than RGB for design work. Note that computer screens can only display about 1000:1 contrast ratio, far less than what we can perceive.

Physiology of the Eye

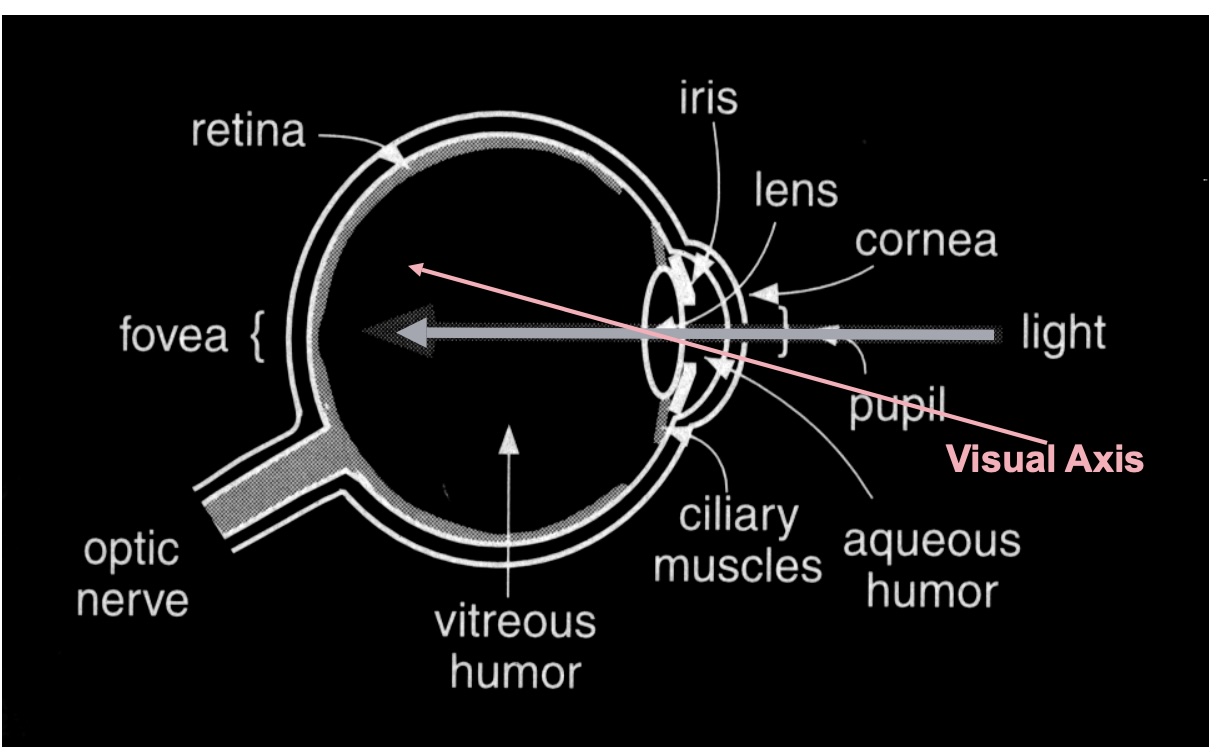

Light passes through cornea, pupil, lens, and reaches the retina

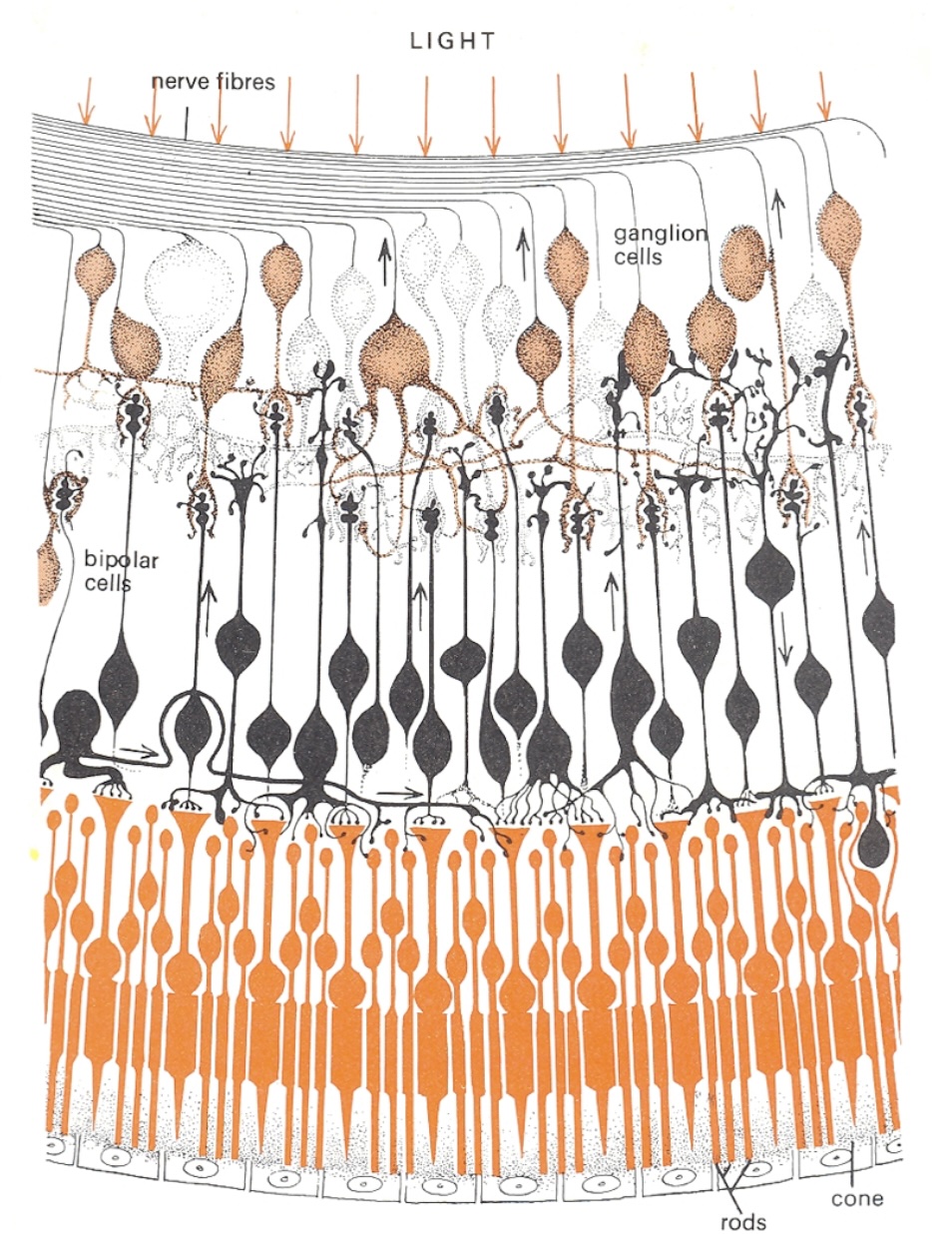

The Retina Structure

Multiple layers of cells process visual information before sending to brain

Photoreceptors: Rods and Cones

Rods

• Active at low light levels (scotopic vision)
• Only one wavelength-sensitivity function
• ~120 million in human eye

Cones

• Active at normal light levels (photopic vision)
• Three types with different peak sensitivities
• ~6 million in human eye
• Concentrated in fovea

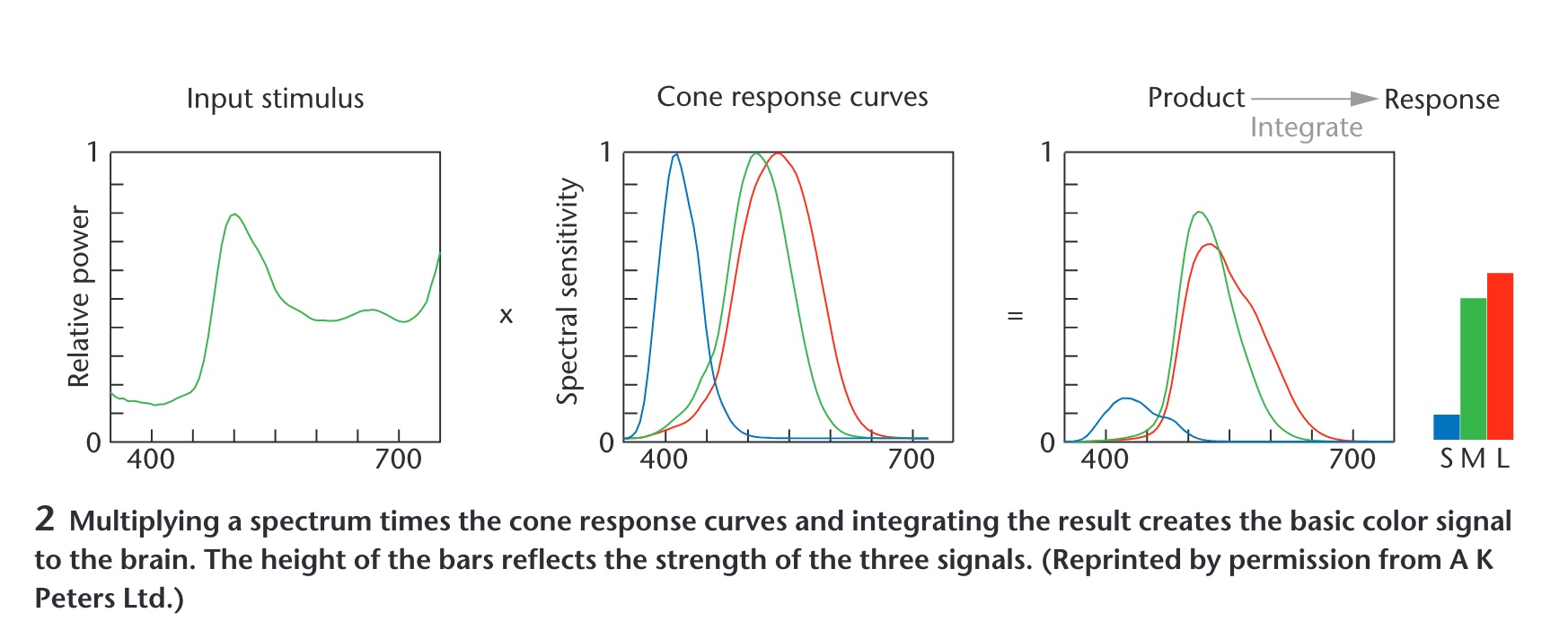

Cone Sensitivity Curves

Three types of cones: S (short/blue), M (medium/green), L (long/red)

Critical slide! This is the foundation of trichromatic color theory. Note the overlapping sensitivity curves - this is why we can’t see “pure” wavelengths. The brain interprets the relative activation of all three cone types. Point out that the L and M curves are very close, which is why red-green colorblindness is most common.

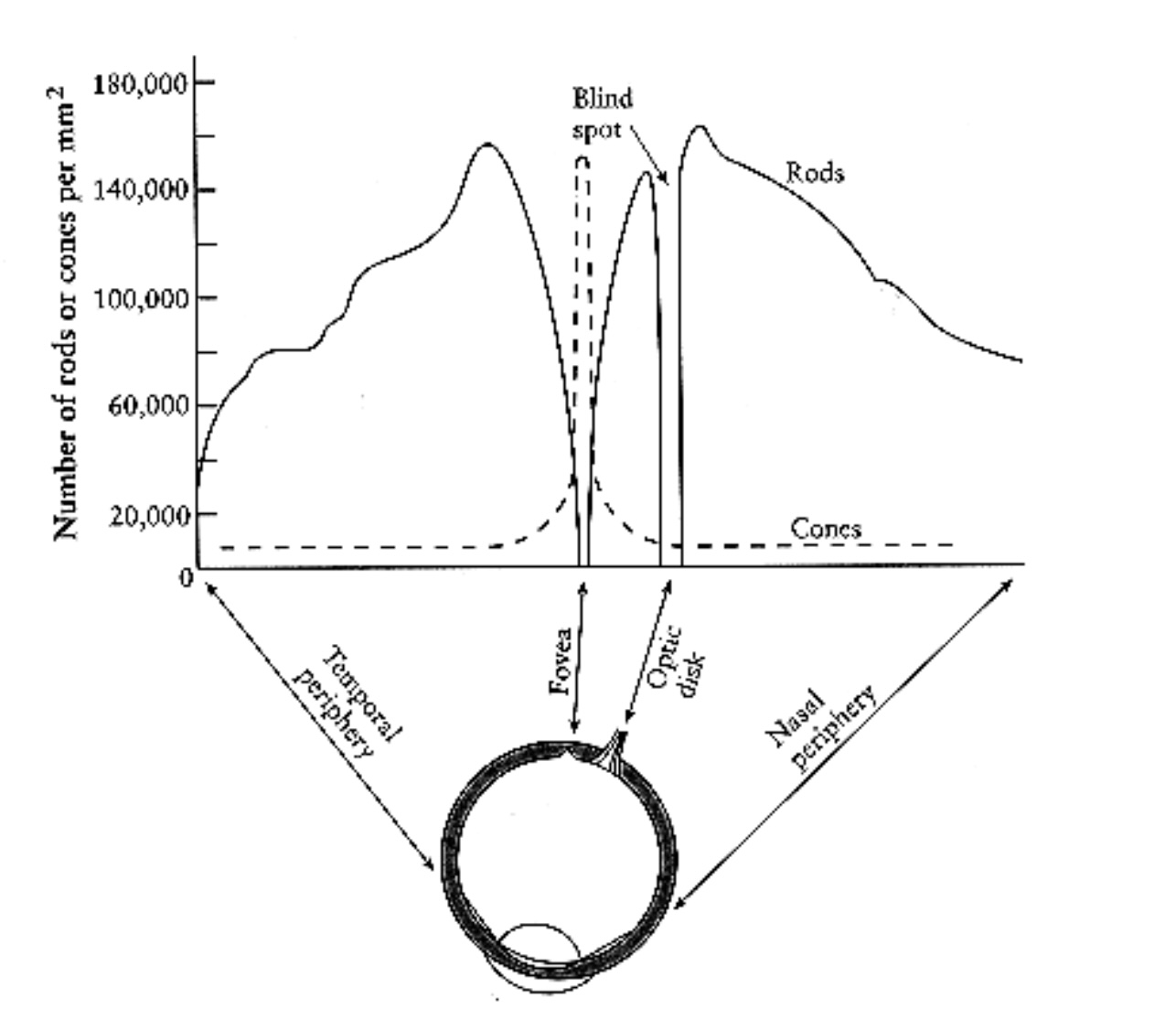

Density of Cones Across Retina

Highest density in fovea (center of vision)

Emphasize the importance of the fovea (the central 2° of vision). This is where acuity and color discrimination are highest - cone density reaches 150,000 per mm². This biological fact explains why legends and critical information should be placed centrally or made salient enough to attract foveal attention. Teaching Point: When the visualization requires reading fine detail or discerning subtle color differences, the viewer must consciously shift their gaze. This is why we can’t rely on peripheral vision for detailed color work - the cone density drops dramatically outside the fovea. Practical implication: Don’t put critical color-coded information in the periphery of a visualization.

Rods vs. Cones Sensitivity

Rods more sensitive in low light; cones provide color vision

How We Perceive Color

Color perception results from brain’s interpretation of cone responses

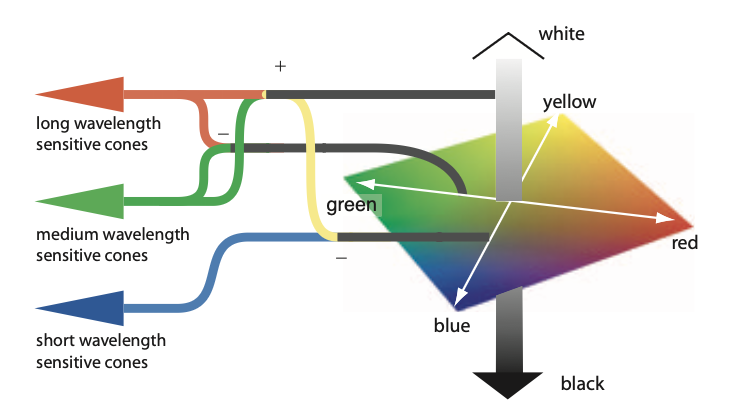

Opponent Process Theory

Three Opponent Channels

Color Opposition:

• 🔴 Red ↔︎️ Green 🟢 (cannot see “reddish-green”)
• 🔵 Blue ↔︎️ Yellow 🟡 (cannot see “yellowish-blue”)
• ⚫ Black ↔︎️ White ⚪ (luminance channel)

Key Insights:

• Explains why we see afterimages in complementary colors
• Processed in retinal ganglion cells and LGN
• Some cells excited by red, inhibited by green (and vice versa)
• Explains unique hues: red, green, blue, yellow

This is THE theory that bridges trichromatic theory (3 cone types) with how we actually experience color. The opponent channels are why we have four unique hues (red, green, blue, yellow) even though we have three cone types. Modern color spaces like LAB are built on this principle - L for luminance, A for red-green, B for blue-yellow.

The Neural Processing: In V1 (primary visual cortex), the raw signals from the cones in the retina are transformed. Some neurons compute differences between red- and green-sensitive cone signals. Some neurons compute the sum of red- and green-sensitive cones. Still others compute yellow-blue differences. The result is three kinds of color signals that are called color-opponent channels. This transformation happens early in visual processing - starting in retinal ganglion cells and continuing through the lateral geniculate nucleus (LGN) to V1.

Opponent Process Applications

Practical Impact:

• Color space design: LAB uses opponent channels (A = red-green, B = blue-yellow)
• Categorical perception: Explains why we naturally group colors into categories
• Accessible color choices: Understanding oppositions guides colorblind-safe palettes

Visual Demonstrations:

1. Afterimage demonstration - Stare at red dot → see green afterimage
2. Opponent channel diagram - Neural wiring showing R+/G- and B+/Y- cells
3. Color wheel showing oppositions - Traditional wheel with opponent pairs
4. Impossible colors - Why we can’t see reddish-green

Demo: Have students stare at a red square for 30 seconds, then look at white - they’ll see green! This isn’t a “trick” - it’s fundamental to how our visual system works. Fun fact: some people claim they can see “impossible colors” like reddish-green using special viewing conditions, but this is controversial.

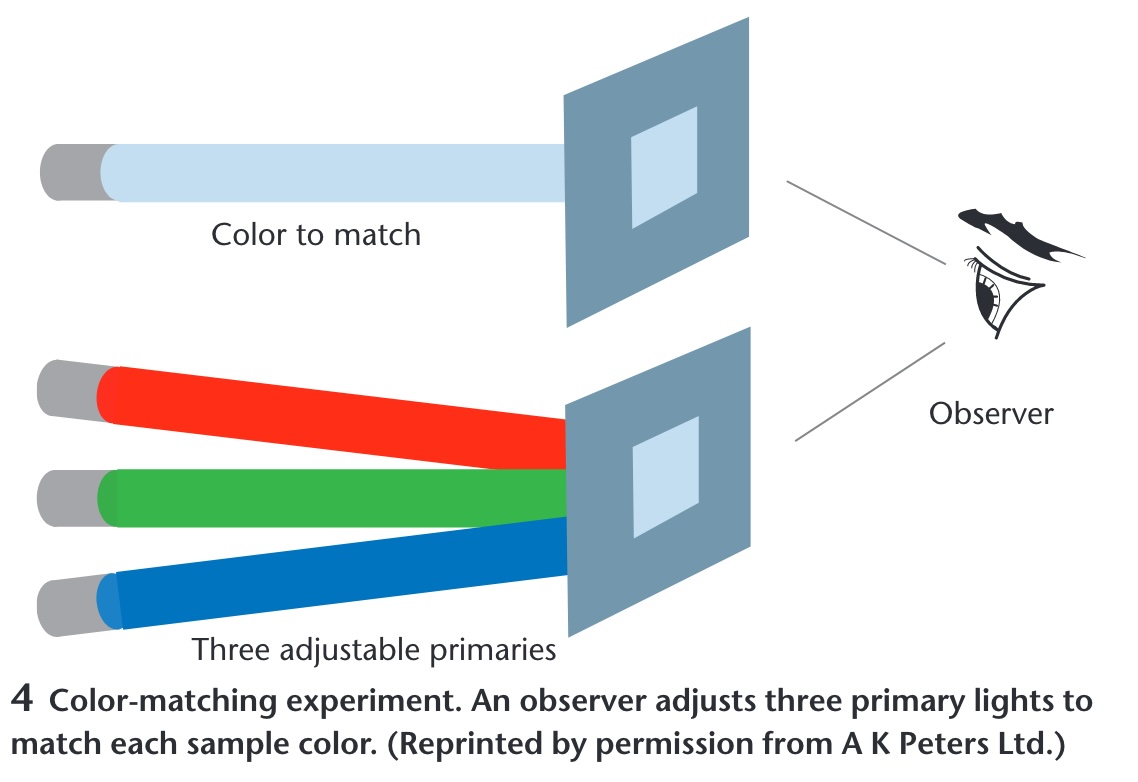

Color Matching Experiments

Foundation of color theory: any color can be matched with three primaries

Explain that this is the empirical basis for all modern color spaces. The key finding from these experiments (starting with Thomas Young in 1801 and refined by Maxwell and others) is that the human visual system is 3-dimensional (trichromatic). This confirms that any physical color can be replicated by mixing three primary lights, leading directly to the RGB model used in computers. Important: Some colors require “negative” amounts of a primary (subtracting light), which is why no three real primaries can produce all visible colors - this led to the development of the CIE XYZ color space with imaginary primaries.

Color Models for Visualization

Trichromacy

Humans perceive colors through three channels

Most useful color description for visualization:

• Hue: What color (red, blue, green…)
• Saturation: Purity of color
• Luminance/Lightness: Brightness

This is where we transition from biology to design principles. These three dimensions map to how we actually think about color. Luminance is the strongest channel for ordered data (we easily see light-to-dark progression). Hue is best for categorical distinctions (red vs blue vs green). Saturation is the weakest channel - hard to judge precise values. This hierarchy guides our encoding choices.

Just Noticeable Difference (JND)

The smallest detectable difference in a stimulus

For Color:

• Luminance: ~1-2% change detectable
• Hue: Varies by wavelength (most sensitive in blue-green)
• Saturation: ~5-10% change needed

Implications for Visualization:

• Need sufficient steps between colors in a scale
• Can’t encode too many distinct values
• Background affects perception (simultaneous contrast)

JND is fundamental to color scale design. It determines how many distinct values you can encode. For continuous scales, you want steps larger than JND to be clearly distinguishable. This is why we can only reliably encode about 5-7 distinct colors, or about 7-10 distinct luminance levels. The background color affects JND - a color that’s distinguishable on white might not be on gray. Ware’s book provides the definitive treatment of JND in visualization contexts.

How Do We Use Color in Visualization?

Two primary purposes:

1. Quantify

Show numerical values

2. Label

Distinguish categories

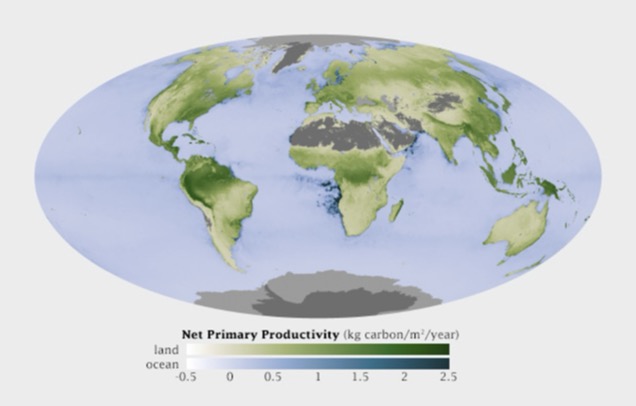

Color to Quantify

Mapping numerical values to color intensity or hue

Focus: Emphasize that for quantification, we are primarily encoding value differences using the Luminance/Lightness channel, as it is perceptually ordered and robust. Hue is generally a weak channel for conveying precise numerical value differences - people cannot reliably order hues or judge relative magnitudes based on hue alone. The map shown uses a single-hue progression (likely blue) where darker = more. This works because luminance has a natural ordering. Multi-hue scales can work (like Viridis) but ONLY if luminance increases monotonically.

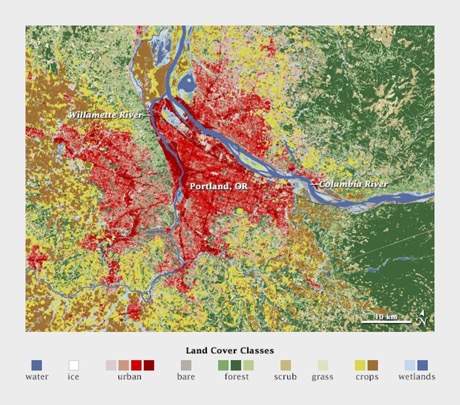

Color to Label

Using distinct colors to represent different categories

Focus: Emphasize that for labeling (categories), we maximize Hue differences and use similar Lightness/Saturation across all categories. The goal is maximum difference (discriminability) without any color seeming more important (uniform saliency). In the transit map shown, each line has a distinct hue but similar visual weight. Common mistake: Using both bright and pastel colors together - the bright ones will dominate attention. Keep saturation consistent unless you intentionally want to highlight certain categories.

Quantitative Color Scales

Desired Properties:

• Uniformity: Value difference = Perceived difference
• Discriminability: As many distinct values as possible

Challenge:

Human perception is non-linear!

This is a key insight students often miss. Equal steps in RGB values don’t produce equal perceptual steps. This is why we need perceptually uniform color spaces like LAB or HCL. Use the example of yellow appearing brighter than blue even at the same RGB intensity.

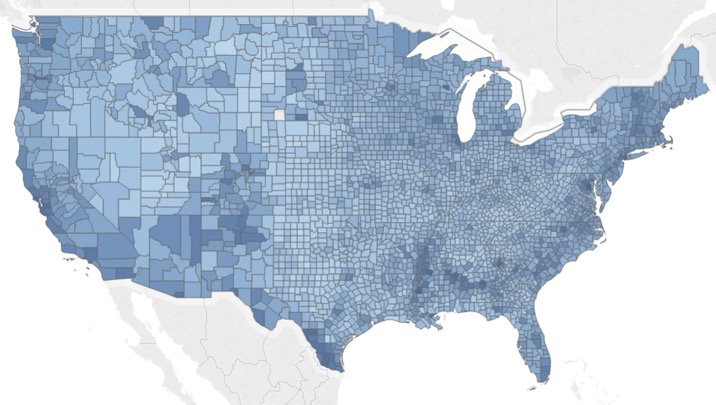

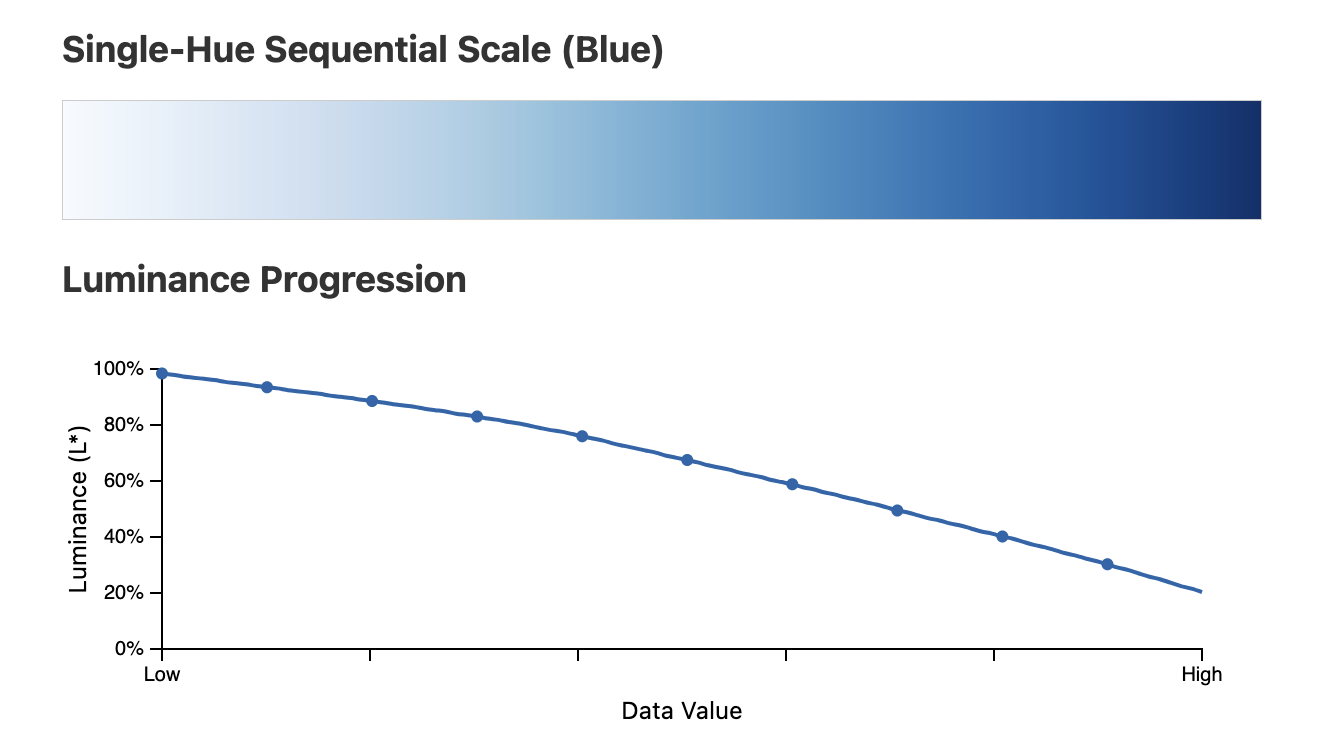

Single Hue Sequential Scales

Best for quantitative data with natural ordering

Key Insight: The luminance (L*) channel decreases monotonically from light to dark, creating the perception of ordered values

This visualization perfectly demonstrates why single-hue sequential scales work. The top shows the actual color scale, while the bottom graph reveals the underlying mechanism: a steady, monotonic decrease in luminance from ~100% to ~20%. This is what our visual system interprets as “less to more” or “low to high”. The other channels (hue and saturation) remain relatively constant. Students should understand that it’s the luminance change, not the “blueness,” that encodes the data values.

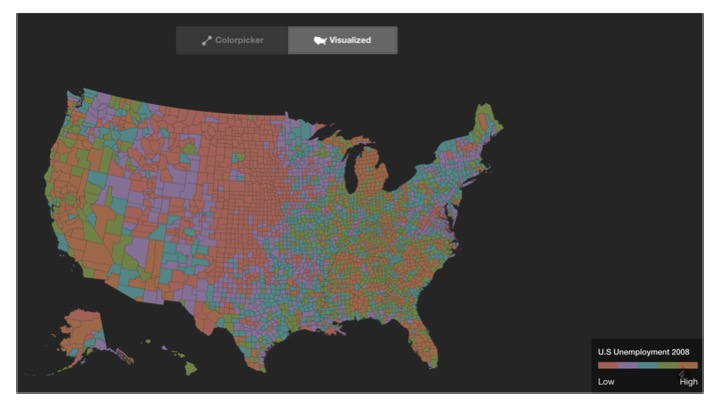

Categorical Color Scales

For nominal/categorical data without inherent order

Design Goals:

• Uniform saliency: Nothing stands out unintentionally
• Maximum discriminability: Each category clearly distinct

Categorical Scale Limits

How many distinct colors can we use effectively?

Research suggests: 5-10 distinct categories maximum

Beyond this limit:

• Colors become confusable
• Need additional encoding (shape, pattern)
• Consider grouping categories

Reference the Magic Number 7 ± 2 rule (Miller’s Law, 1956) for cognitive load. Beyond 5-7 categories, users stop instantly recognizing differences (pre-attentive processing) and must rely on a legend, which slows down analysis dramatically. Healey’s research confirmed this specifically for color. Alternatives when you have too many categories: (1) Group data into super-categories with related sub-hues, (2) Use interactivity - show only relevant categories on demand (filtering/highlighting), (3) Apply texture or shape as redundant encoding, (4) Use “focus + context” - highlight important categories and gray out others, (5) Consider if all categories really need to be shown simultaneously. Remember: Every time users look at the legend, they break their analysis flow.

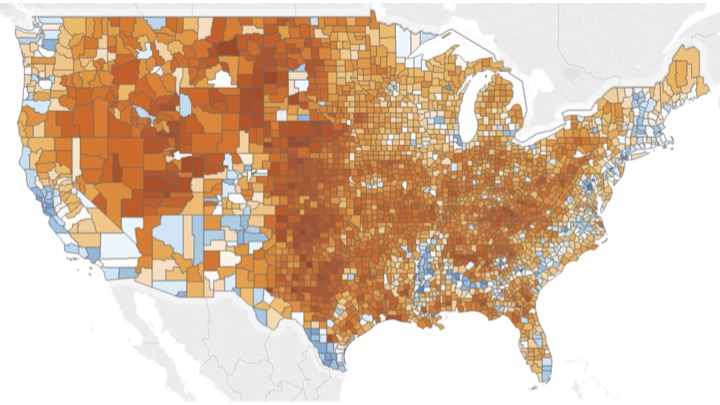

Diverging Color Scales

For data with meaningful midpoint (zero, average, neutral)

Sequential scale obscures the critical 50% threshold

Diverging scale clearly shows above/below threshold

Perfect example of why choosing the right scale matters! The left map makes it hard to see which counties voted majority Republican vs Democrat. The diverging scale immediately reveals the pattern. Other good use cases: temperature anomalies (above/below average), profit/loss, survey responses (agree/disagree). Key insight: the midpoint should be meaningful, not arbitrary.

Color Context Effects

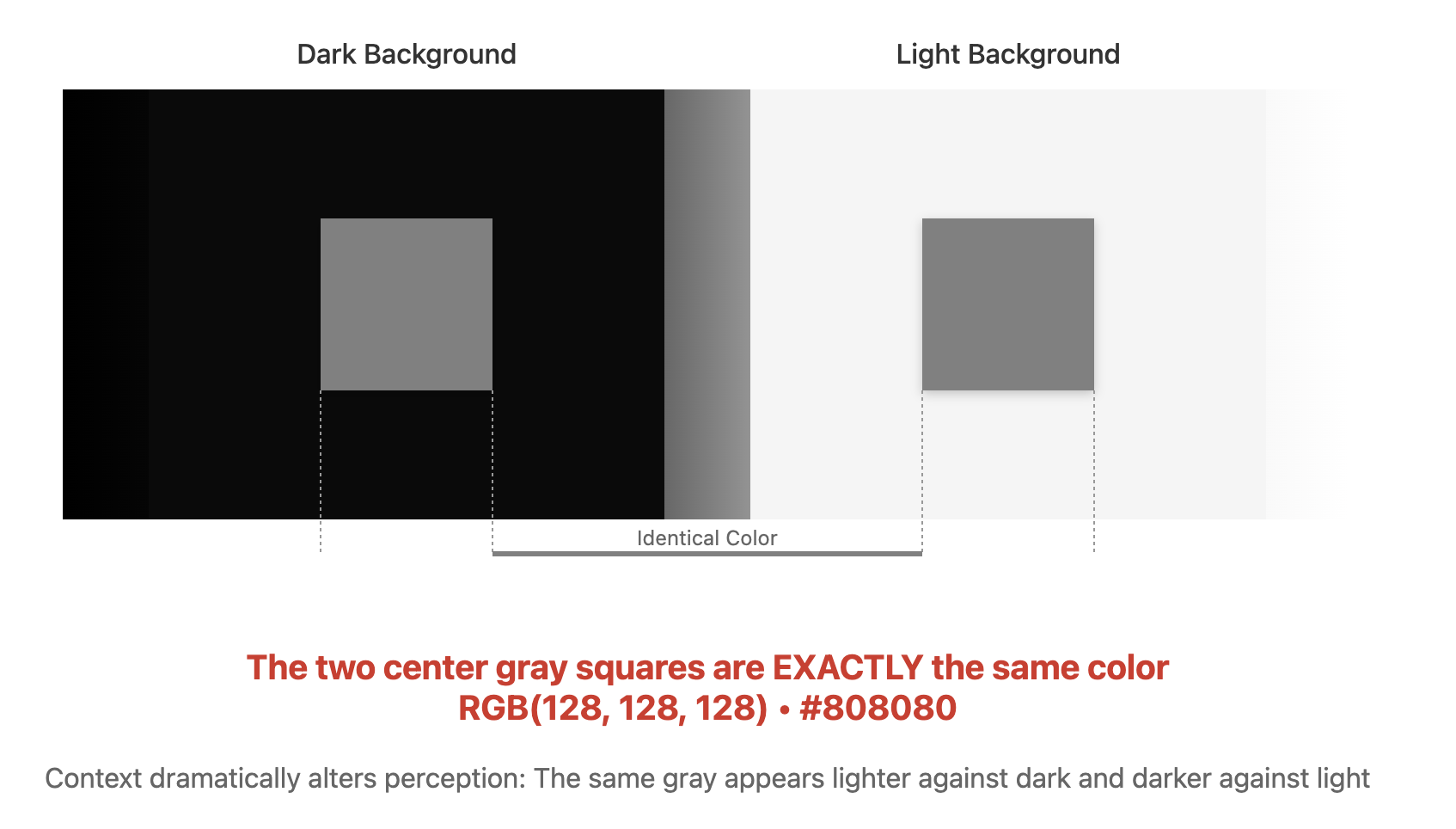

Simultaneous Contrast

The same color appears different depending on surrounding colors

Key Effects:

• Colors appear lighter on dark backgrounds
• Colors appear more saturated next to gray
• Complementary colors enhance each other

Design Implications:

• Test colors in context, not isolation
• Be consistent with backgrounds
• Use borders/whitespace to separate regions

The two center gray squares are EXACTLY the same color (RGB 128, 128, 128) - a classic demonstration often attributed to Josef Albers

• Consider the whole visualization, not just the palette

This is why color palettes that look good in a swatch panel might fail in your visualization. The classic example: a gray square looks yellowish on a blue background and bluish on a yellow background. For maps, this means adjacent regions can affect color perception. Solution: add thin white borders between regions, or test your palette with actual data patterns. Albers’ classic work and Adelson’s checker shadow illusion are foundational demonstrations of these effects.

Semantic Color Associations

Cultural and Contextual Meanings

Universal Associations:

• Red: Heat, danger, stop 🔥 🛑
• Blue: Cold, water, calm 💧 ❄️
• Green: Nature, growth, go 🌱 ✅
• Yellow: Caution, energy ⚠️ ⚡

Domain-Specific:

• Finance: Red = loss (↓), Green = profit (↑)
• Politics: Red/Blue = parties (varies by country!)
• Temperature: Blue = cold ❄️, Red = hot 🌡️
• Health: Red = critical 🚨, Yellow = warning ⚠️, Green = normal ✅

Leverage semantic associations when they help, but be aware they’re not universal. In China, red means prosperity. In finance, Western markets use red for losses, but East Asian markets use red for gains! Always consider your audience. Sometimes you should intentionally break conventions - use blue for hot if you’re showing cooling needs, not temperature. Lin et al.’s research provides empirical data on color-concept associations.

Color Blindness Considerations

~10% of males and ~1% of females have color vision deficiencies

Emphasize that this means in a typical classroom, 2-3 students likely have some form of color vision deficiency. Red-green is most common (deuteranopia and protanopia). Always design with this in mind - use redundant encoding (shape, pattern) and test with simulators. The Viridis colormap was specifically designed to be perceptually uniform AND colorblind-safe.

Color Vision Simulators

Tools for Testing Accessibility

Browser Extensions:

• Colorblinding (Chrome)
• Let’s Get Color Blind (Firefox)
• Real-time webpage simulation

Design Software Plugins:

• Adobe Photoshop: View → Proof Setup → Color Blindness
• Sketch: Stark plugin for accessibility testing
• Figma: Able plugin for color vision simulation

Online Simulators:

• Coblis
• Sim Daltonism (macOS app)
• Upload images for instant simulation

Different types of color vision deficiencies: Deuteranope (red-green), Protanope (red-green), Tritanope (blue-yellow)

Best Practice: Always test your visualizations with simulators during development, not after

Demo one of these tools live if possible! Show how a seemingly clear red/green encoding becomes indistinguishable. Point out that deuteranopia (missing green cones) affects ~6% of males, protanopia (missing red cones) ~2%, and tritanopia (missing blue cones) is rare (~0.01%). The tools are free and take seconds to use - there’s no excuse for not testing. Emphasize: “If you’re not testing for colorblindness, you’re excluding 10% of your male audience.”

Color Spaces

RGB (Red, Green, Blue)

• Device-oriented
• Not perceptually uniform
• Common in programming

HSL/HSV (Hue, Saturation, Lightness/Value)

• More intuitive for humans
• Better for color selection
• Still not perceptually uniform

LAB/LCH

• Perceptually uniform
• Better for interpolation
• Used in professional design

Critical concept: RGB is how devices work, but not how humans perceive. Equal steps in RGB space don’t produce equal perceptual steps - this is why RGB interpolation looks muddy. HSL is better for picking colors manually but still has issues (yellow appears brighter than blue at same L value). LAB/LCH are based on human perception studies and produce smooth gradients. Always use LAB or HCL for color interpolation in visualizations.

Perceptual Color Spaces

Why Perceptual Uniformity Matters

In RGB space, equal numerical steps ≠ equal perceptual steps

// RGB interpolation can produce muddy colors
d3.interpolateRgb("red", "blue")

// LAB interpolation maintains perceptual uniformity
d3.interpolateLab("red", "blue")

// HCL even better for many visualizations
d3.interpolateHcl("red", "blue")

Demo this live if possible! RGB interpolation between red and blue passes through muddy purple. LAB maintains brightness consistency. HCL (Hue-Chroma-Luminance) follows the color wheel, producing vibrant intermediates. For diverging scales, HCL is often best. For sequential scales, LAB works well. The key is that perceptual uniformity means your data differences map linearly to perceived color differences.

Design Implications of Color Processing

From Biology to Design

Our visual system’s structure creates constraints and opportunities:

Three Opponent Channels Process Color:

• Luminance (Black-White): Best for detail and patterns
• Red-Green: Categorical distinctions
• Yellow-Blue: Categorical distinctions (weaker than red-green)

Key Biological Facts:

• Far fewer blue-sensitive cones (~2% of total)
• Blue cones less sensitive than red/green
• Chromatic channels cannot convey fine detail

This bridges the gap between understanding the biology and applying it to design. The three opponent channels have very different capabilities - luminance is king for detail, while chromatic channels are better for categorical coding. The scarcity of blue cones explains why blue is problematic for fine detail.

Luminance Contrast is Critical for Detail

Text and Fine Details Require Strong Luminance Contrast

ISO Standard Recommendation:

• Minimum 3:1 luminance ratio between text and background
• Chromatic channels (red-green, yellow-blue) cannot convey fine detail

Common Mistakes:

• ❌ Blue text on dark backgrounds (illegible - lacks luminance contrast)
• ❌ Red text on green background (relies only on chromatic contrast)
• ✅ Black text on white (maximum luminance contrast)
• ✅ High-contrast text with color used sparingly for emphasis

This is one of the most practical design guidelines. Many students think “red on green should work because they’re opposite” - but if the luminance values are similar, it fails for small text. Demo if possible: show red text on green background with matched luminance - it’s nearly unreadable. Blue on dark is particularly bad because blue cones are scarce and less sensitive.

Color Coding Limitations

How Many Colors Can Users Distinguish?

Research Finding: Only 6-12 colors work reliably as codes

Best Practice - Use Unique Hues First:

1. 🔴 Red
2. 🟢 Green
3. 🟡 Yellow
4. 🔵 Blue
5. ⚫ Black
6. ⚪ White

Why These Work Best:

• Most easily learned and identified
• Correspond to opponent channel structure
• Universal across cultures (mostly)

Beyond 6 categories? Add redundant encoding (shape, pattern, labels)

The 6-12 limit is empirically validated. The unique hues are special because they align with our opponent process channels - they’re the “purest” examples of each channel. After these 6, you can add orange, purple, brown, pink, etc., but discriminability drops. This is why Tableau and other tools default to 6-10 color palettes. Real-world tip: If you have 20 categories, color alone won’t work - consider grouping or interactive filtering.

Size-Dependent Color Choices

Small Symbols vs. Large Areas

Small Symbols/Text

Requirements:

• Strong, saturated colors
• High luminance contrast with background
• Avoid subtle color differences

Examples:

• Points on scatter plots
• Line graphs
• Small icons
• Text labels

Large Areas

Requirements:

• Subdued, low-saturation colors
• Avoid overwhelming the design
• Prevent contrast effects on smaller elements

Examples:

• Background fills
• Map regions
• Area charts
• Dashboard panels

This is counterintuitive for many students. Bright saturated colors work great for small elements but become overwhelming for large areas. Large saturated areas also create strong simultaneous contrast effects that distort perception of smaller elements. Think of heatmaps - the cells should be relatively muted, while outliers or highlights can be saturated. Geographic maps are a classic example: countries should be pastel/muted, while city markers can be bright and saturated.

Simultaneous Contrast & Design Practice

Context Affects Color Perception

Simultaneous Contrast Effects:

• Backgrounds affect small color patches more than vice versa
• Same color appears different on different backgrounds
• Critical for visualization design

Highlighting Best Practices:

• ✅ Maintain or increase luminance contrast for emphasis
• ❌ Common mistake: Reducing contrast (e.g., light text on light highlight)
• ✅ Dark text on light highlight, or light text on dark highlight

Shape and Color Together:

• Light-colored patterns interfere less with shape perception
• Dark saturated patterns dominate and obscure 3D shape

PowerPoint’s default highlighting (yellow background) often reduces contrast by making black text appear lighter - this is exactly wrong! Good highlighting increases luminance difference. For 3D visualizations colored by data values, use light colors so shading cues for shape remain visible. The simultaneous contrast demo (gray squares on different backgrounds) should be shown if available - it’s a powerful demonstration that context is everything in color perception.

D3 Color Scales

Sequential Scales

// Single hue
const blueScale = d3.scaleSequential()
  .domain([0, 100])
  .interpolator(d3.interpolateBlues);

// Multi-hue
const viridisScale = d3.scaleSequential()
  .domain([0, 100])
  .interpolator(d3.interpolateViridis);

Built-in Color Schemes:

• Blues, Greens, Reds, Purples, Oranges, Greys
• Viridis, Inferno, Magma, Plasma (perceptually uniform)

D3 Diverging Scales

// Diverging scale with custom midpoint
const divergingScale = d3.scaleDiverging()
  .domain([−50, 0, 100])  // min, midpoint, max
  .interpolator(d3.interpolateRdBu);

// Common diverging schemes:
// RdBu (red-blue), RdYlGn (red-yellow-green),
// BrBG (brown-green), PuOr (purple-orange)

Perfect for:

• Temperature anomalies
• Election results
• Profit/loss
• Any data with meaningful zero

Guide students to choose an interpolator like d3.interpolateRdBu because it is perceptually uniform around the critical midpoint, preventing the muddy gray region that RGB interpolation creates. The domain([min, midpoint, max]) structure is critical - the midpoint should be meaningful (0 for anomalies, average for deviations, 50% for proportions). Common mistake: Using diverging scales when data doesn’t have a meaningful midpoint. If your data is all positive (e.g., 0-100%), use sequential instead. The midpoint in the interpolator gets white/neutral color, so it must represent a true neutral value in your data.

D3 Categorical Scales

// Ordinal scale with color scheme
const categoryScale = d3.scaleOrdinal()
  .domain(["A", "B", "C", "D"])
  .range(d3.schemeCategory10);

// Available categorical schemes:
// schemeCategory10 - 10 distinct colors
// schemeSet1 - 9 colors (colorblind safe)
// schemeSet2 - 8 colors (print friendly)
// schemeSet3 - 12 colors (pastel)
// schemePaired - 12 colors (paired)

Important: schemeSet1 is colorblind-safe but has very saturated colors that can be overwhelming. schemeSet2 is better for professional presentations. schemePaired is great when you have natural pairs in your data (e.g., before/after, male/female). Always test your chosen scheme with actual data - what looks good in isolation may not work with your specific visualization.

Color Scale Best Practices

Sequential Data

✅ Use single or multi-hue sequential

❌ Don’t use rainbow scales

Categorical Data

✅ Use distinct hues with similar saturation/lightness

❌ Don’t use more than ~8 categories

Diverging Data

✅ Use when there’s a meaningful midpoint

❌ Don’t use for purely positive data

Accessibility

✅ Test with colorblind simulators

✅ Provide redundant encoding when possible

Use this slide to review common student errors. Sequential Data: Rainbow maps are the #1 mistake—they create false edges where the color suddenly shifts (e.g., yellow band appears as a boundary). Show example: weather maps where rainbow creates artificial storm boundaries. Categorical Data: Reiterate that Saturation should be kept consistent across categories to avoid unintended emphasis. If one category is bright red and another is pale blue, the red will dominate. Diverging: Students often use these for data without true midpoints. Accessibility: Not optional - in any professional setting, colorblind-safe design is required, not suggested.

D3 Data Transformation Scales (Beyond Color)

Time Scales

const timeScale = d3.scaleTime()
  .domain([new Date(2020, 0, 1), new Date(2025, 0, 1)])
  .range([0, width]);

Log Scales

const logScale = d3.scaleLog()
  .domain([1, 1000])
  .range([0, width]);

Power Scales

const sqrtScale = d3.scaleSqrt()  // same as scalePow().exponent(0.5)
  .domain([0, 100])
  .range([0, width]);

Important distinction: These scales transform your data space, not color space. They map data values to positions, sizes, or other visual properties. Time scales understand JavaScript dates and create nice tick marks at meaningful intervals (days, months, years). Log scales are essential for data with large ranges - use when data spans multiple orders of magnitude (e.g., population, income). Square root scales are crucial for encoding data as area - since area grows with radius squared, sqrt scale makes the area proportional to data value, not the radius.

Quantized Scales

Transform continuous domains into discrete ranges

// Quantize scale - equal intervals
const quantizeScale = d3.scaleQuantize()
  .domain([0, 100])
  .range(["low", "medium", "high"]);

// Quantile scale - equal quantities
const quantileScale = d3.scaleQuantile()
  .domain(data)
  .range(["Q1", "Q2", "Q3", "Q4"]);

// Threshold scale - custom breakpoints
const thresholdScale = d3.scaleThreshold()
  .domain([30, 70])
  .range(["cold", "comfortable", "hot"]);

Critical for choropleth maps and binned visualizations. Quantize creates equal-width bins (like a histogram). Quantile creates bins with equal numbers of data points - useful for skewed distributions. Threshold gives you complete control over breakpoints - use for meaningful boundaries like freezing point, poverty line, etc. Always show the binning method in your legend!

Color Interpolation

D3 provides multiple interpolation methods:

// RGB interpolation (can be muddy)
d3.interpolateRgb("red", "blue")(0.5);

// HSL interpolation (follows hue wheel)
d3.interpolateHsl("red", "blue")(0.5);

// LAB interpolation (perceptually uniform)
d3.interpolateLab("red", "blue")(0.5);

// HCL interpolation (best for many cases)
d3.interpolateHcl("red", "blue")(0.5);

// Cubehelix (rainbow with uniform luminance)
d3.interpolateCubehelix("red", "blue")(0.5);

Creating Custom Color Scales

// Custom sequential scale
const customSequential = d3.scaleSequential()
  .domain([0, 100])
  .interpolator(t => d3.interpolateHcl("#e8f4f8", "#004c6d")(t));

// Custom diverging scale
const customDiverging = d3.scaleDiverging()
  .domain([−1, 0, 1])
  .interpolator(t => t < 0.5
    ? d3.interpolateHcl("#67001f", "#f7f7f7")(t * 2)
    : d3.interpolateHcl("#f7f7f7", "#053061")((t - 0.5) * 2));

// Piecewise scale
const piecewise = d3.scaleLinear()
  .domain([0, 50, 100])
  .range(["#2166ac", "#f7f7f7", "#b2182b"]);

Practical Color Guidelines

For Print

• Consider grayscale reproduction
• Use ColorBrewer schemes
• Test on actual printer

For Screen

• Consider monitor variations
• Use sufficient contrast
• Test on different devices

For Accessibility

• Use colorblind-safe palettes
• Provide alternative encodings
• Test with simulators

Color Tools and Resources

Online Tools:

• ColorBrewer - Color schemes for maps
• Accessible Colors - WCAG compliance
• Coblis - Colorblind simulator

D3 Resources:

• D3 Scale Chromatic - All color schemes
• Observable Color Notebooks - Interactive examples

Research:

• ColorBrewer Paper - Harrower & Brewer
• Viridis Explanation - Why we need better colormaps

Common Color Mistakes

1. Don’t Use Rainbow Scales

Why: Perceptually non-uniform, creates false boundaries Instead: Use Viridis or single-hue sequential

2. Don’t Exceed 7-8 Categories

Why: Colors become indistinguishable Instead: Group data or use interactive filtering

3. Don’t Ignore Cultural Context

Why: Red = profit in Asia, loss in West Instead: Know your audience, test assumptions

4. Don’t Use Poor Contrast

Why: Fails WCAG accessibility standards Instead: Test contrast ratios (4.5:1 minimum)

Show real examples: (1) Rainbow map - point out the artificial yellow band that appears as a boundary but isn’t in the data. (2) Too many categories - show a 20-category pie chart where you can’t distinguish colors. (3) Context - red in Western culture means “stop/bad” but in Chinese culture can mean “prosperity/good”. (4) Poor contrast - show light yellow on white background, fails WCAG standards.

Lab Preview: Color and Scales in D3

Today’s Lab Activities:

1. Implement different scale types (linear, log, time)
2. Create color scales for different data types
3. Build a choropleth map with sequential colors
4. Design accessible categorical palettes
5. Test colorblind safety

Key Concepts to Practice:

• Scale domains and ranges
• Color interpolation methods
• Legends for color scales
• Interactive scale adjustments

The lab will be hands-on with Observable notebooks. Students will see the immediate impact of different color choices. The choropleth exercise is particularly important - it combines everything: data binning, color scales, and geographic visualization. Make sure students test their palettes with the colorblind simulator. Common mistakes to watch for: using too many colors, poor contrast, and forgetting to add legends.

Putting It All Together

Example: Temperature Visualization

// Temperature data with anomalies
const tempScale = d3.scaleDiverging()
  .domain([−10, 0, 10])  // Anomaly in degrees
  .interpolator(d3.interpolateRdBu)
  .clamp(true);  // Prevent extrapolation

// Apply to data
svg.selectAll("rect")
  .data(temperatureData)
  .enter().append("rect")
  .attr("fill", d => tempScale(d.anomaly))
  .attr("opacity", 0.8);  // Slight transparency

// Add legend
const legend = d3.legendColor()
  .scale(tempScale)
  .title("Temperature Anomaly (°C)");

Color Gamut and Display Limitations

Not All Colors Are Equal

Display Constraints:

• sRGB: Standard web/monitor gamut (most limited)
• Adobe RGB: Wider gamut for professional displays
• P3: Modern displays (iPhone, Mac)
• Print CMYK: Different gamut than screens

Practical Implications:

• Highly saturated colors may not reproduce
• Test on target devices
• Provide fallbacks for older displays
• Consider print requirements early

Use the analogy: “Color gamut is the vocabulary of the display.” P3 has a richer vocabulary than sRGB - about 25% more colors. A color defined in P3 might be “out of gamut” for an sRGB display and will be clamped to the nearest available color, potentially changing your carefully designed palette. This is essential for professional design where a visualization might be seen on a high-end monitor (designer’s machine) but needs to be accessible on standard web displays (user’s machine). Action: Always work in or constrain colors to the sRGB space for maximum web compatibility. Test on different devices. For print, convert to CMYK early and adjust - never trust screen colors for print work. Modern CSS supports color-gamut media queries to provide fallbacks.

Summary: Key Concepts

Vision & Perception

• Trichromatic vision: 3 cone types → 3D color space
• Non-uniform perception: JND varies by channel
• Foveal concentration: Color discrimination best in center

Color Uses in Visualization

• Sequential: Ordered data (light → dark)
• Diverging: Data with meaningful midpoint
• Categorical: Distinct groups (max 5-8)

Accessibility is Essential

• ~10% color vision deficiency (mostly red-green)
• Always provide redundant encoding
• Test with simulators before deployment

These are the foundational concepts that explain WHY we make certain color choices. The biology constrains what’s possible; the use case determines what’s appropriate; accessibility ensures what’s ethical and professional.

Summary: Implementation & Practices

D3 Color Implementation

• Perceptual spaces: Use LAB/HCL for interpolation
• Built-in schemes: Viridis, ColorBrewer, etc.
• Scale types: Sequential, diverging, ordinal

Critical Best Practices

• Avoid rainbow scales for continuous data
• Maintain uniform saliency in categories
• Consider display gamut (sRGB for web)

Testing Checklist

✓ Colorblind safe? ✓ Prints in grayscale? ✓ Works on different displays? ✓ Context effects considered?

These are the practical guidelines for implementation. Remember: Less is often more with color. When in doubt, test with real users and real data. Color should enhance understanding, not dominate the visualization.

Next Week: Deceptive Visualizations

Topics:

• Types of visual deception
• Intentional vs. unintentional misleading
• Cognitive biases in interpretation
• Ethical responsibilities
• Case studies from media

Pre-reading:

• Tufte Chapter 2: “Graphical Integrity”
• “Truncating the Y-Axis: Threat or Menace?”

Required Readings

Core Papers & Resources

Which Color Scale to Use Lisa Charlotte Rost, Datawrapper Blog

• Practical guide to choosing color scales
• Covers sequential, diverging, and categorical palettes
• Real-world examples from data journalism
• Interactive examples you can modify

Modeling Color Difference Szafir, D.A. (2018). IEEE TVCG

• Empirical study of color perception in visualization
• Shows RGB interpolation problems
• Proposes perceptually-uniform color models
• Critical for understanding why we use LAB/HCL

D3 Scale Chromatic Observable Interactive Notebook

• Live code examples of all D3 color schemes
• Interactive comparisons between scales
• Copy-paste ready code snippets
• Includes accessibility information

These three readings form the foundation: Rost gives practical advice, Szafir provides the science behind perceptual uniformity, and the Observable notebook gives hands-on practice. Students should spend most time on the Observable notebook - actually trying the code.

Optional Readings

Advanced Color Theory

Somewhere Over the Rainbow Liu, Y. & Heer, J. (2018). CHI 2018

• Large-scale empirical study (n=9,871 participants)
• Quantifies effectiveness of different color scales
• Proves why rainbow colormaps are problematic
• Recommendations: single-hue and multi-hue scales outperform rainbow

Color Use Guidelines for Mapping Brewer, C.A. (1994). Cartography and GIS

• Foundation of ColorBrewer tool
• Systematic approach to color selection
• Addresses print, screen, and colorblind considerations
• Still the definitive reference 30 years later

The Viridis Color Palettes Garnier et al. (2021)

• Story behind the most popular scientific colormap
• Perceptually uniform, colorblind-safe, print-friendly
• Mathematical derivation and testing methodology

Color Naming Models for Color Selection Heer, J. & Stone, M. (2012). IEEE CG&A

• Data-driven approach to color selection using natural language
• Based on XKCD color survey with 3.5 million judgments
• Probabilistic model for color naming and selection
• Foundation for many modern color tools

Visual Thinking for Information Design (2nd Edition) Colin Ware (Morgan Kaufmann, 2022)

• Comprehensive coverage of color perception
• Practical design guidelines
• Chapters on color theory and visual encoding
