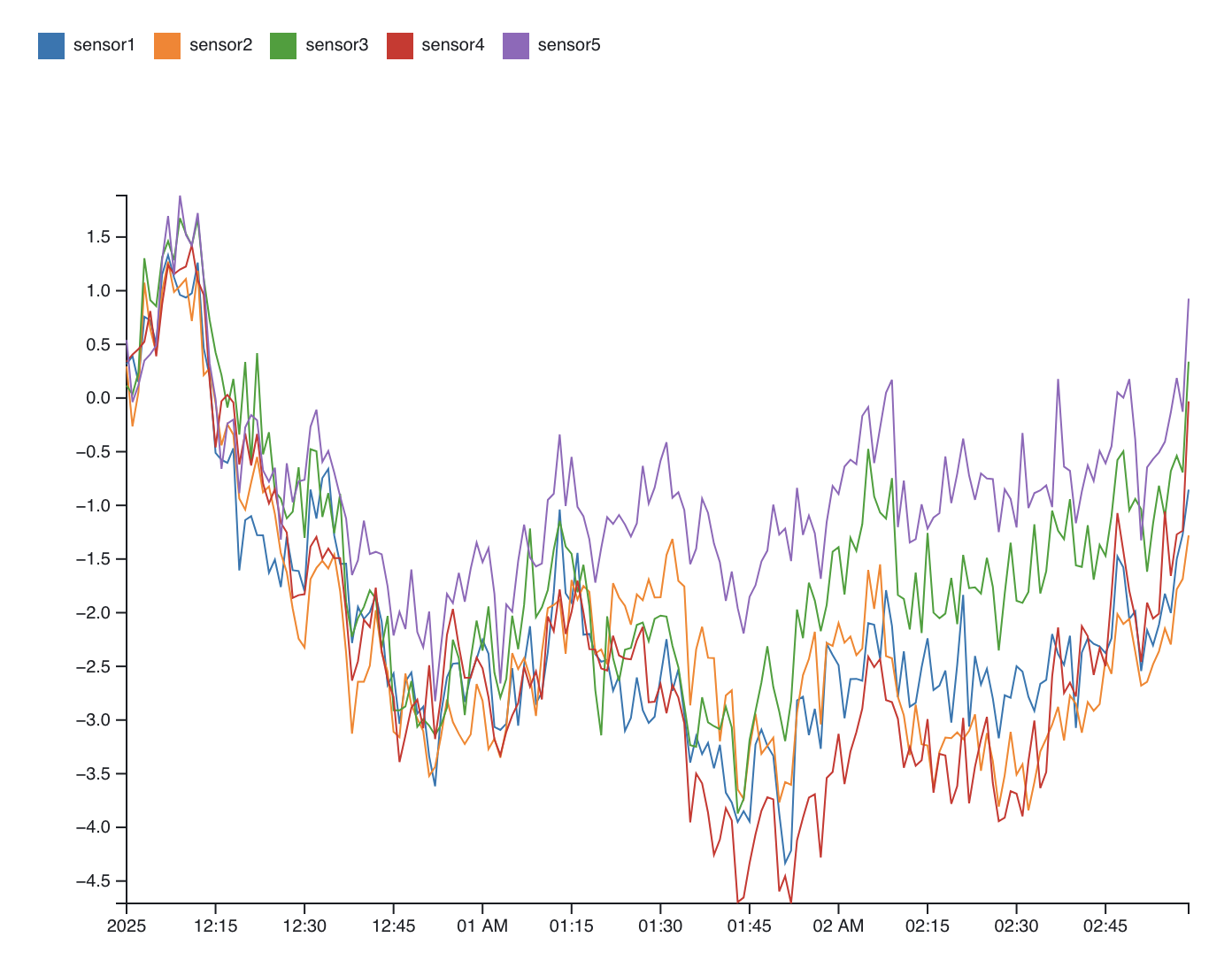

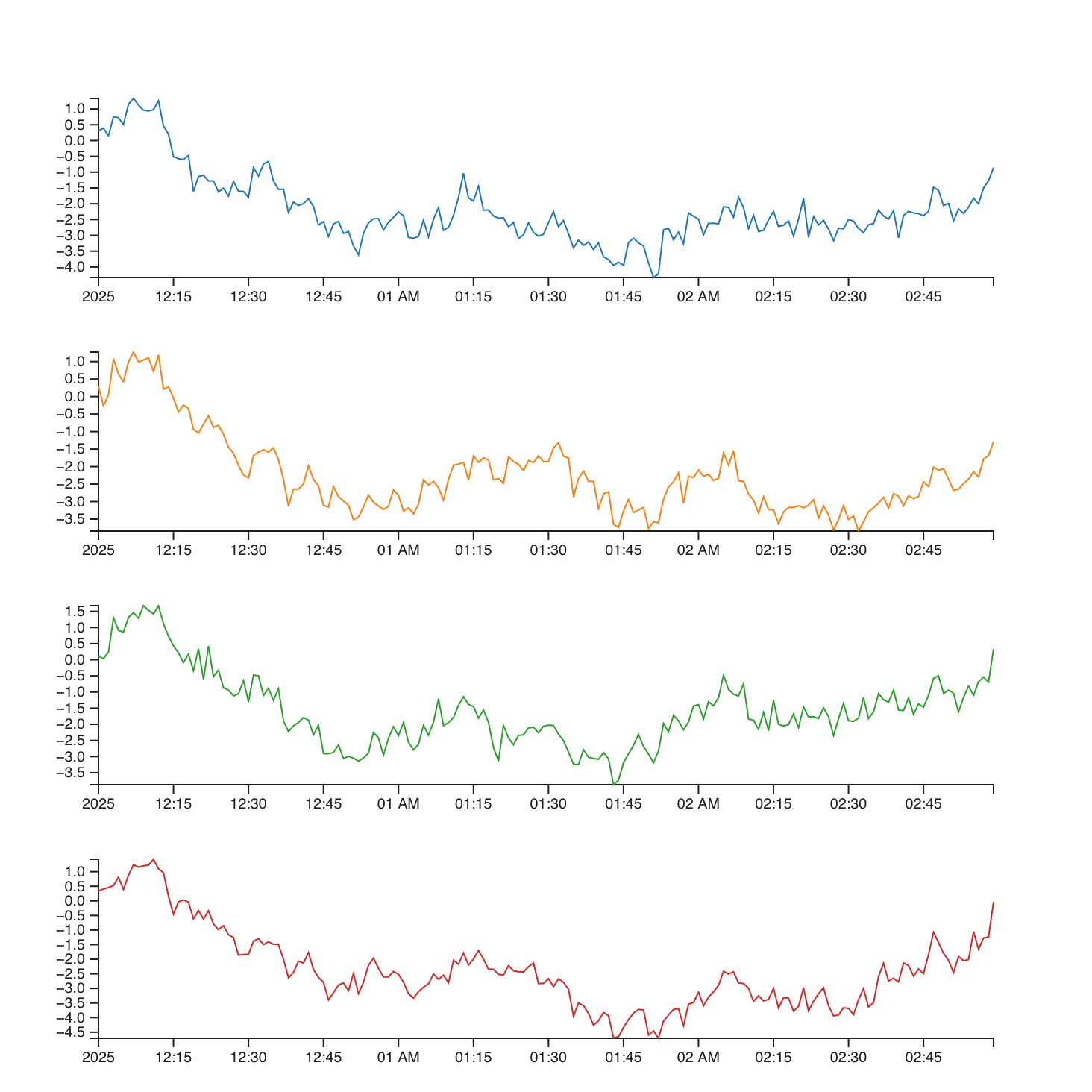

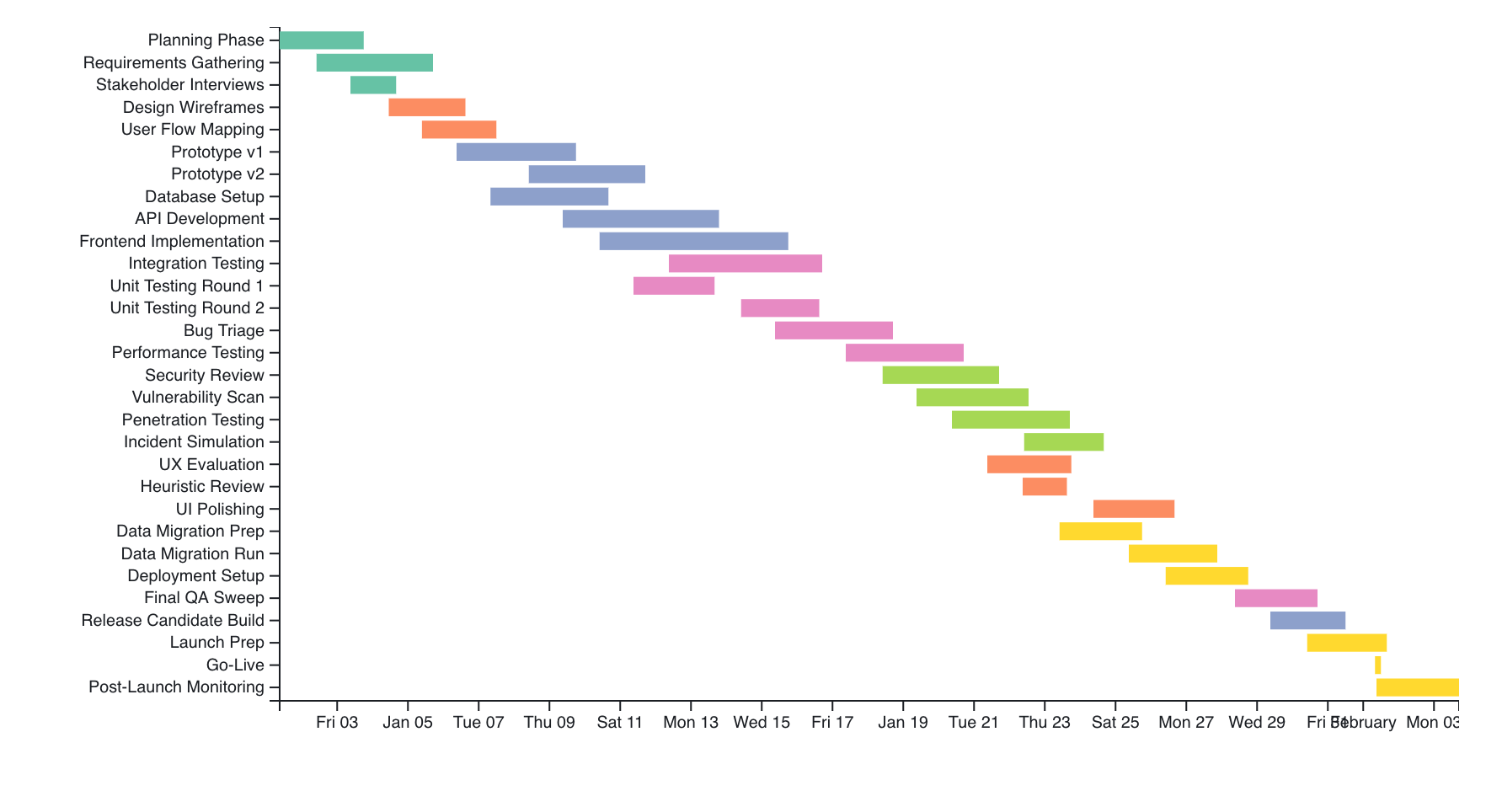

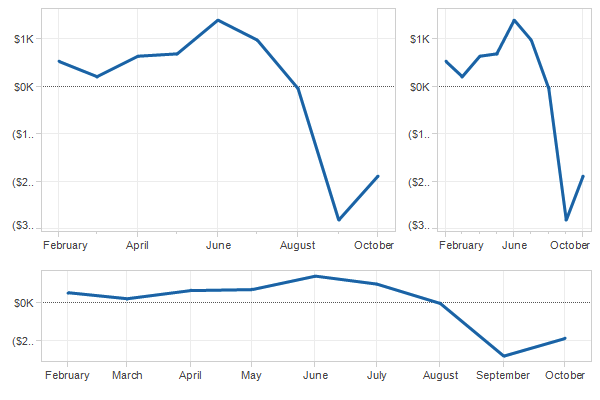

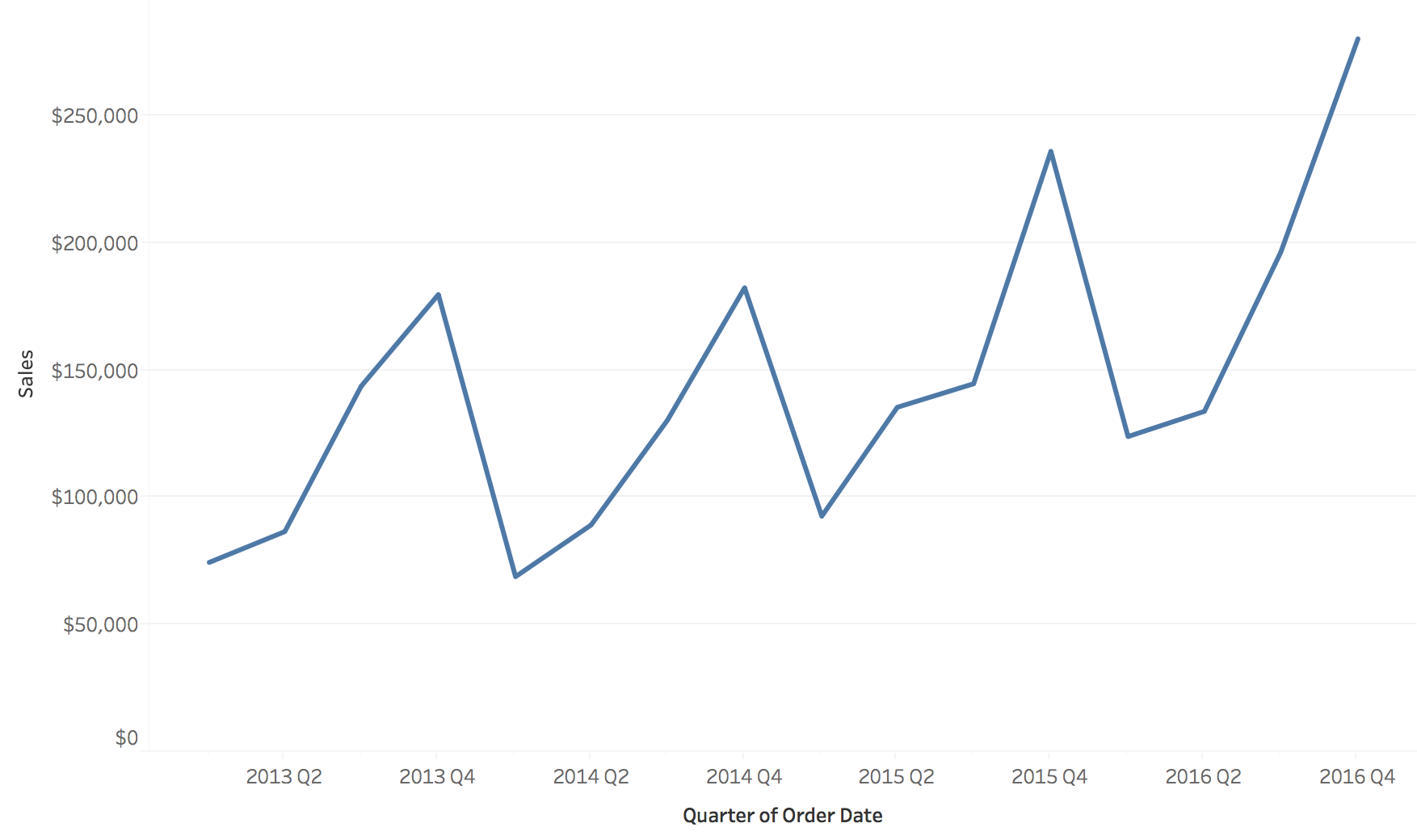

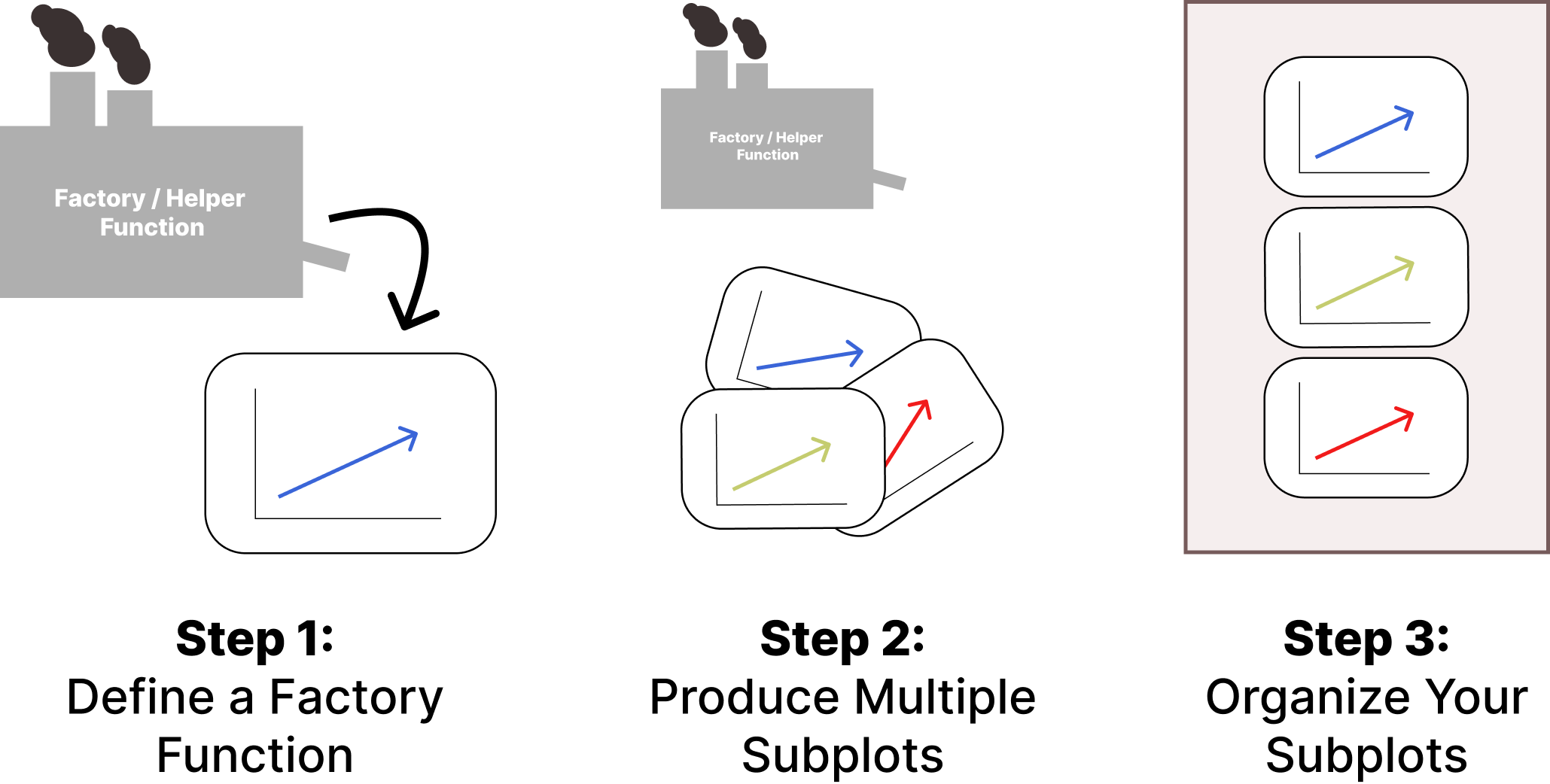

## Week 9 Lab Overview |User Interface|Graphics Library|Notebook(s)| |:--|:--|:--| |[observablehq.com](https://observablehq.com)|[D3](https://d3js.org/)|[Week 11 Lab Notebook](https://observablehq.com/@rk2546/2025-infovis-cse_week-11-lab)| ### Today's Lab Activities Today we will be a exploring the following topics: 1. Group and Mini Projects: Reminders 2. Main Lab Activities: 1. Further Practice with `Date()` parsing 2. Aspect Ratios 3. Small Multiples: 1. Creating Subplots 2. Combining Plots 4. Example: Gantt Charts ## Group and Mini Projects: Reminders | **Assignment** | **Due Date** | **Details** | |---------------|--------------|-------------| | **Milestone #3: First Draft** | Nov. 17 | Initial D3 implementations | | **Mini-Project #2** | Nov. 20 | Temporal Data Visualizations | ## Group Project Milestone #3: Deliverables Submit an **Observable notebook** or a **Framework project** with: * Brief introduction to your project * For each question: - State the question - Show the D3 visualization - Describe what the visualization shows - Answer the question based on the visualization **At this stage:** * All visualizations should be implemented in D3 * Focus on getting the basics working * Styling/polish can come later * Interactivity should be functional (if included) * It's still okay to refine questions if needed ## Group Project Milestone #3: Reminders This is your first implementation milestone. - **We expect working D3 code for all your visualizations.** - Your visualizations don't need to be perfect, but they should work and show your data correctly. - labels might be messy - colors might be defaults - interactions might be basic - This is when you discover implementation challenges: - "This chart type is harder than I thought..." - "The data is more complex than I realized..." - We'll give you feedback on what to improve for the next draft. ## Review: Line Charts: Time + Quantity The fundamental temporal visualization: position encodes both time (x) and values (y)  # Aspect Ratio How chart dimensions affect perception **Definition**: Aspect Ratio = Width / Height --- ## Impact on Trend Visibility Different ratios make trends more or less visible  **Rule of thumb:** Always test different aspect ratios to see which one best conveys your message ## Review: Parsing Time Data in JavaScript :::{.columns} ::::{.column width="50%"} ### JavaScript: `Date()` object class - This object class **expects your timestamp to already be in the ISO-8601 format**. - this class gives you some nifty functions, such as using `.getYear()` or `.getMonth()` to extract the year and month of a timestamp. - You can look up the properties and functions of the `Date()` class here. ```js // Returns "2020-01-15T15:30Z" new Date("2020-01-15T10:30:00"); // ERORR: Not ISO-8601 Format; this will return `null` new Date("15-01-2020"); ``` :::: ::::{.column width="50%"} ### D3: `d3.timeParse()` - Unlike JavaScript's `Date()` object class, D3 lets you **define the expected format of your input string**. - The output is generally the same: it'll return a `Date()` object class in the ISO-8601 format. ```js // Returns "2020-01-15T15:30Z" const parser1 = d3.timeParse("%Y-%m-%dT%H:%M:%S"); parser1("2020-01-15T10:30:00"); // Will return successfully: "2020-01-15T05:00Z" const parser2 = d3.timeParse("%d-%m-%Y"); parser2("15-01-2020"); ``` :::: ::: ## Let's Try: Basic Time Series Line Chart ### Practice: Typecasting Date Types [5 mins] - We already imported the raw data from `ex_data_1@4.csv` into `raw_data`, without type-casting the data. - **Goal**: Use native JavaScript `Array.map()` to typecast the features in our raw data into the following: - `date`: JavaScript `Date()` type - `temperature`: Float type - `humidity`: Integer type - `co2`: Integer type ## Let's Try: Basic Time Series Line Chart ### Practice: Plotting Line Data [15min] :::{.columns3} ::::{.column width="50%"} - You've been given a set of interactable elements. They output to a `dims` object. You must use this `dims` object to help you plot a dynamic line chart. - Once you plot the chart, play around with the chart's aspect ratio. Which aspect ratio seems to be the best for each y-axis feature? :::: ::::{.column width="5%"} :::: ::::{.column width="45%"} :::: ::: # Solving Spaghetti Plots  One solution: **Small Multiples** ## Small Multiples - Implementation - **Core Idea**: Split the data into series or groups of data. Then visualize that data in separaet plots. - _Many_ ways to achieve this in programming. - Individually plotting each chart by hand. - Using fancy libraries to auto-separate the plots. - Automating the process of generating charts. ## How Do Small Multiples? Let's Think  ## A Possible Solution: {fig-align="center"} ## Let's Try: Solving Spaghetti Plots ### Practice: Creating our Factory Function [10min] Let's create a **factory function** to help us generate a single subplot. Your job is to create this `create_subplot()` factory function with the following parameters: - `parent`: The parent element - usually `svg`. - `sensor`: An element from `sensors`. - `x_scale`: The scale used for our x-axis. Must be generated prior. - `c_scale`: The color scale. Must be generated prior. - `width`: The width of this subplot. - `height`: The height of this subplot. - `x_pos`: The x-position of this chart relative to the parent. - `y_pos`: The y-position of this chart relative to the parent. If succcessful, the function should append a new chart with all our data already plotted inside it and sized based on our parameters, alongside our axes and so on. ## Let's Try: Solving Spaghetti Plots ### Practice: Organizing our Subplots [10min] :::{.columns2} ::::{.column width="50%"} - Once we have `create_subplot()` created, then we can see if it works. - Combine the scaffolded code we gave you with `create_subplot()`. Keep in mind that you need to calculate the position of each chart manually, given the provided SVG parameters! - If successful, you should see our solution plot to the right. :::: ::::{.column width="50%"} {width="75%"} :::: ::: ## A Personal Favorite: Gantt Charts  ## Group and Mini Projects: Reminders | **Assignment** | **Due Date** | **Details** | |---------------|--------------|-------------| | **Milestone #3: First Draft** | Nov. 17 | Initial D3 implementations | | **Mini-Project #2** | Nov. 20 | Temporal Data Visualizations |
