Week 4 Lab: JavaScript Essentials Prior to D3.js

CS-GY 6313 - Information Visualization

Ryan Kim

New York University

2026-09-25

Week 4 Lab Overview

User Interface Graphics Library Notebook
observablehq.com (None!) Lab 3 Notebook

Today’s Lab Activities

  • Introduction to D3.js… kinda
  • Introduction to JavaScript Essentials
  • Data Manipulation (mapping, filtering)

Why JavaScript First?

A lot of D3.js requires basic JavaScript. Before we even start with D3.js, we have to have a solid grasp on JavaScript fundamentals.

JavaScript is:

  • (relatively) lightweight as a standalone language (though the JavaScript ecosystem is getting heavier with each new library released).
  • a “Just-In-Time” compiler (Read more here).
  • used both in and outside of the web browser (e.g. Node.js, React).
  • loosely-typed (or weakly-typed, dynamically-typed, etc.)

let v.s. var v.s. const

JavaScript Allows Type-inference

JavaScript uses type inference to determine what data type a variable is. Therefore, you don’t have to directly state if a variable is a string, int, etc.

const example : string = "Hello world";
const example = "Hello world";


JavaScript Requires Scope Declarations

However, JavaScript still requires you to define the scope of your variables within their block.

  • let and const are block-scoped; they are restricted to the closest curly brackets they are surrounded by.
    • let declares that a variable can be reassigned a value within its scope.
    • const declares that a variable cannot be reassigned a value.
  • var is function-scoped and global-scoped; they can leak out of if statements or other kinds of loops.
    • var declares that a variable can be reassigned a value.
    • Try to avoid var as much as possible.

Reassignment v.s. Redeclaration

There’s a difference between reassignment and redeclaration:

  • Reassignment: Setting a new value to an existing variable
  • Redeclaration: Usually accidentally, even if the variable already exists, you create another variable with the same name.
Scope Reassignment Redeclaration
var Can be updated Can be redeclared
let Can be updated Cannot be redeclared
const Cannot be updated Cannot be redeclared

[Note]: If you set a const variable as an object, though you cannot reassign a new value to it, you can still modify the object’s properties and values.

Source: W3Schools

JavaScript vs TypeScript

TypeScript is a SuperSet of JavaScript. It contains all the properties and characteristics of pure JavaScript, while also extending it further. You code in TypeScript, and then when you deploy your code your IDE will convert your TypeScript back into normal JavaScript.

Feature JavaScript TypeScript
Typing loose/dynamically typed static typed
Tools Limited built-in tooling Comes with IDEs, code editors
Compatibility Cannot run TypeScript in JavaScript files Backwards-compatible with JavaScript
Extension .js .ts

Things… Don’t Really Change

Most JavaScript you write will STILL be valid even in TypeScript. Why even care about TypeScript then?

let age: number = 25;
let name: string = "Alice";
let active: boolean = true;
const scores: number[] = [85, 90, 72];

function add(a: number, b: number): number {
  return a + b;
}

const student: {
  name: string;
  score: number;
} = {
  name: "Alice",
  score: 95
};

TypeScript allows you (but doesn’t require you) to explicitly declare a variable’s type. This cannot be done in JavaScript, as JS is a dynamically typed language.

let age = 25;
age = "Twenty-Five";
  • JavaScript: Allowed
  • TypeScript: Error!

TypeScript’s stricter type inference can be leveraged to catch erroneous (re)assignments that pure JavaScript would be happy to compile.

// Example: Interface
interface Student {
  name: string,
  grade: number
}

const students : Student[] = [
  { name: "Alice", grade: 96 },
  { name: "Jim", grade: 97 }
]


// Example: Alias
type PriceTier = "Low" | "Medium" | "High";

let tier : PriceTier = "Medium";
let tier2 : PriceTier = "Expensive";  // <- ERROR

TypeScript introduces interface and aliases that are reusable. If you are aware of the specific qualities of your variables, then you can use this to ensure that your functions compile properly.


Be careful about typing!

Even if you explicitly declare your variables’ types, those checks will disappear after your TypeScript is compiled. These explicit typings are only for YOUR benefit, to make more robust code. When your code is actually deployed, your type checks will no longer work.

Note: Observable Notebooks and Variable Scope

Scope works slightly differently in Observable’s online notebooks. Here are some simple rules:

  • You can control whether a cell should be in TypeScript, JavaScript, Observable JavaScript, or even Markdown and/or HTML
  • Scope rules regarding reassignment and redeclaration are at the code block-level.
  • Variables in one code block can still be accessed by other code blocks, regardless of whether let, const, or var are used.

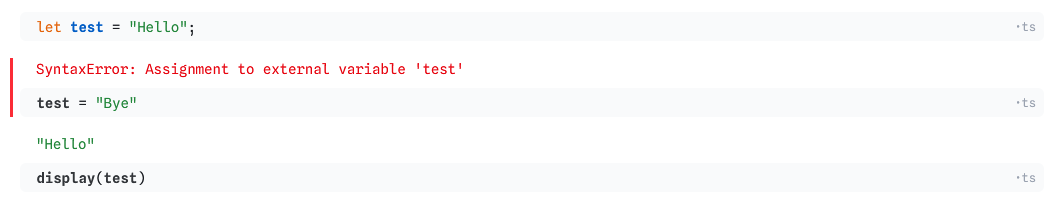

Erroneous Code

Valid Code

JavaScript Objects and Data Storage

Below is an example of a dataset stored as both a JavaScript Object (specifically, an array of items) and as a .csv table

  • The dataset is simply an Array storing multiple objects in order.
  • Each item in the dataset is an Object.
  • Each Object is a collection of keys/properties and values.
const students = [
  {name: "Alice", major: "CS", score: 82},
  {name: "Bob", major: "Biology", score: 91},
  {name: "Carol", major: "CS", score: 76},
  {name: "David", major: "Physics", score: 88}
];
name major score
Alice CS 82
Bob Biology 91
Carol CS 76
David Physics 88

In-Lab Exercise: What Does This JavaScript Do?

If we are given this dataset:

const students = [
  {name: "Alice", major: "CS", score: 82},
  {name: "Bob", major: "Biology", score: 91},
  {name: "Carol", major: "CS", score: 76},
  {name: "David", major: "Physics", score: 88}
];

Then what will these return?

Code Output/Returns
students[0] {name: “Alice”, major: “CS”, score: 82}
students[0].name “Alice”
students[2].score 76

If we are given this dataset:

const students = [
  {name: "Alice", major: "CS", score: 82},
  {name: "Bob", major: "Biology", score: 91},
  {name: "Carol", major: "CS", score: 76},
  {name: "David", major: "Physics", score: 88}
];

Then what will these return?

Code Output/Returns
students.map(d => d.name) [“Alice”,“Bob”,“Carol”,“David”]
students.map(d => d.score) [82,91,76,88]
students.filter(d => d.score >= 85)
[
  {name: "Bob", major: "Biology", score: 91},
  {name: "David", major: "Physics", score: 88}
]

JavaScript Functions

Two types:

Traditional Functions

function multiply(num1, num2) {
  const result = num1 * num2
  return result
}

Arrow Functions

const multiply = (num1, num2) => {
  const result = num1 * num2
  return result
}


In most cases, they are the same. Many consider arrow functions to be a shorthand version of writing functions. if your arrow function reduces down to a single return, then you can even go shorter:

const multiply = (num1, num2) => num1 * num2

map() v.s. filter() v.s. reduce()

JavaScript provides some in-built functions.

  • map(): Keep the same length, but re-“map” values into something else.
  • filter(): Keep values the same, but “filter” out items that don’t match a provided criteria
  • reduce(): Combination of map() and filter(), literally “reduces” an array into something else.

We won’t use reduce() a lot, but you may need map() and filter() in order to manipulate data in JavaScript.


map():

const mapped = data.map( item => {
  item.price += 10;
  return item;
})

filter()

const filtered = data.filter( item => {
  return item.price >= 20;
})

reduce()

const initial_price = 0
const reduced = data.reduce(
  (accumulator, item) => accumulator + item.price,
  initial_price
);

In-Lab Exercise: Practicing with Data Handling

The Gapminder dataset is the focus of this exercise. With it, and using JavaScript’s in-built map(), filter(), and/or reduce(), produce the following:

  • An array with only life expectancy values
  • All records including and after 1990
  • All records from France only
  • (Bonus) An array of all unique countries present within the Gapminder data
  • (Bonus) The average population size of each country

An array with only life expectancy values

data.map(d => d.life_expect)


All records including and after 1990

data.filter(d => d.year >= 1990)


All records from France only

data.filter(d => d.country == "France")

(Bonus) An array of all unique countries present within the Gapminder data

const countries = [...new Set(data.map(d => d.country))];


(Bonus) The average population size of each country

const average_population = countries.map(country => {
  const rows = data.filter(d => d.country == country);
  const average = rows.reduce((sum, d) => sum + d.pop, 0) / rows.length;
  return {
    country: country,
    population: average
  };
});

End of Lab

  • Exercise #4 will be posted tonight and is due on October 1st, 2026 @ 11:59pm!
  • Where do I ask questions?
    • Office Hours!
    • Our course Discord!
