Color Theory and D3 Scales
Published:

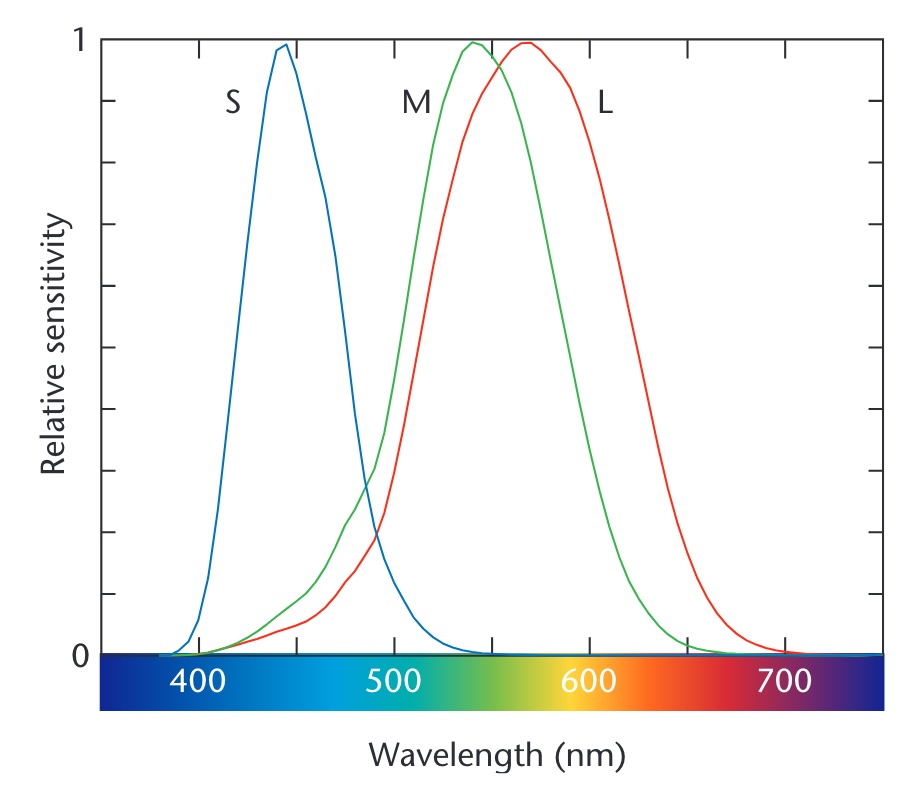

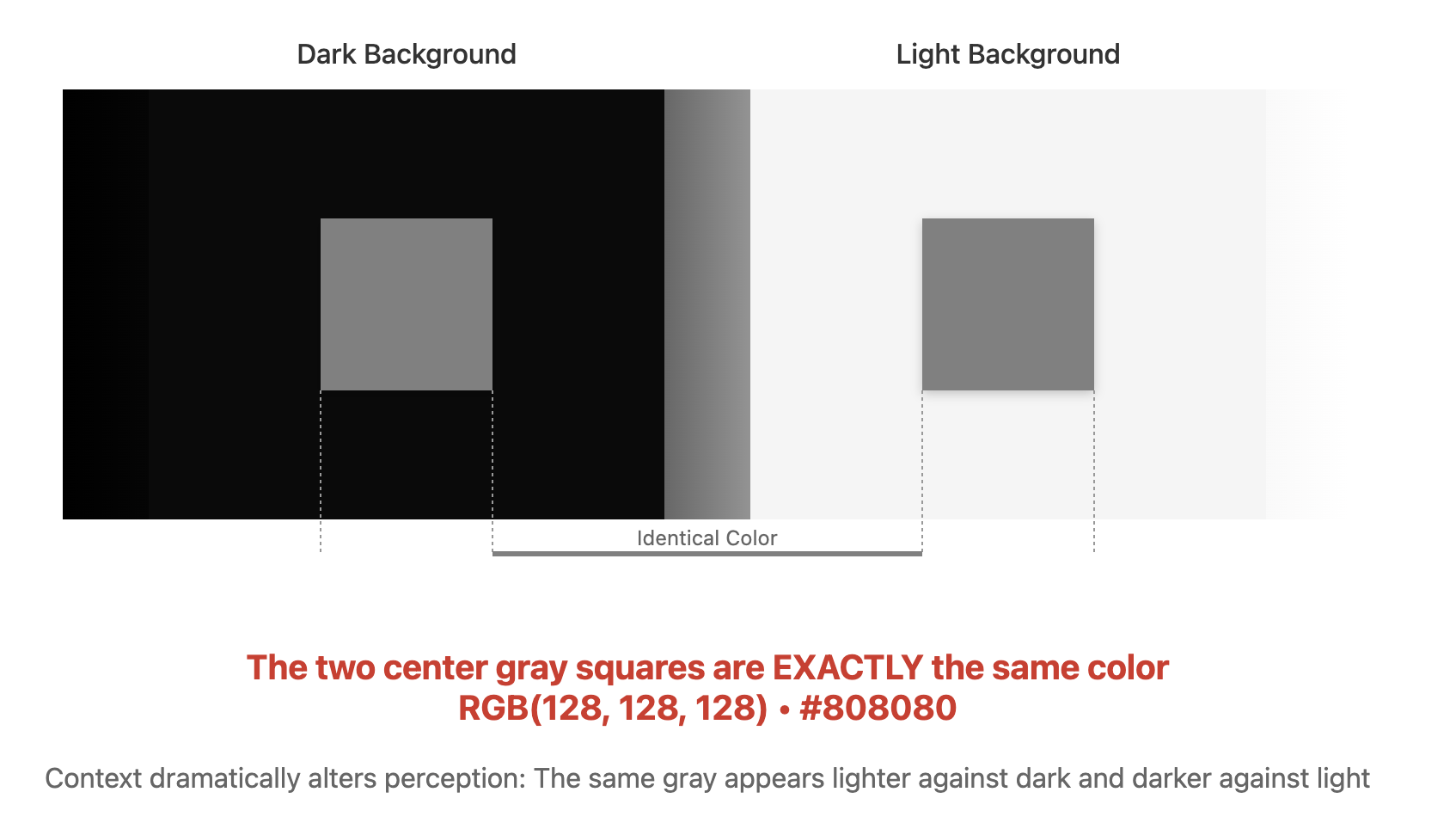

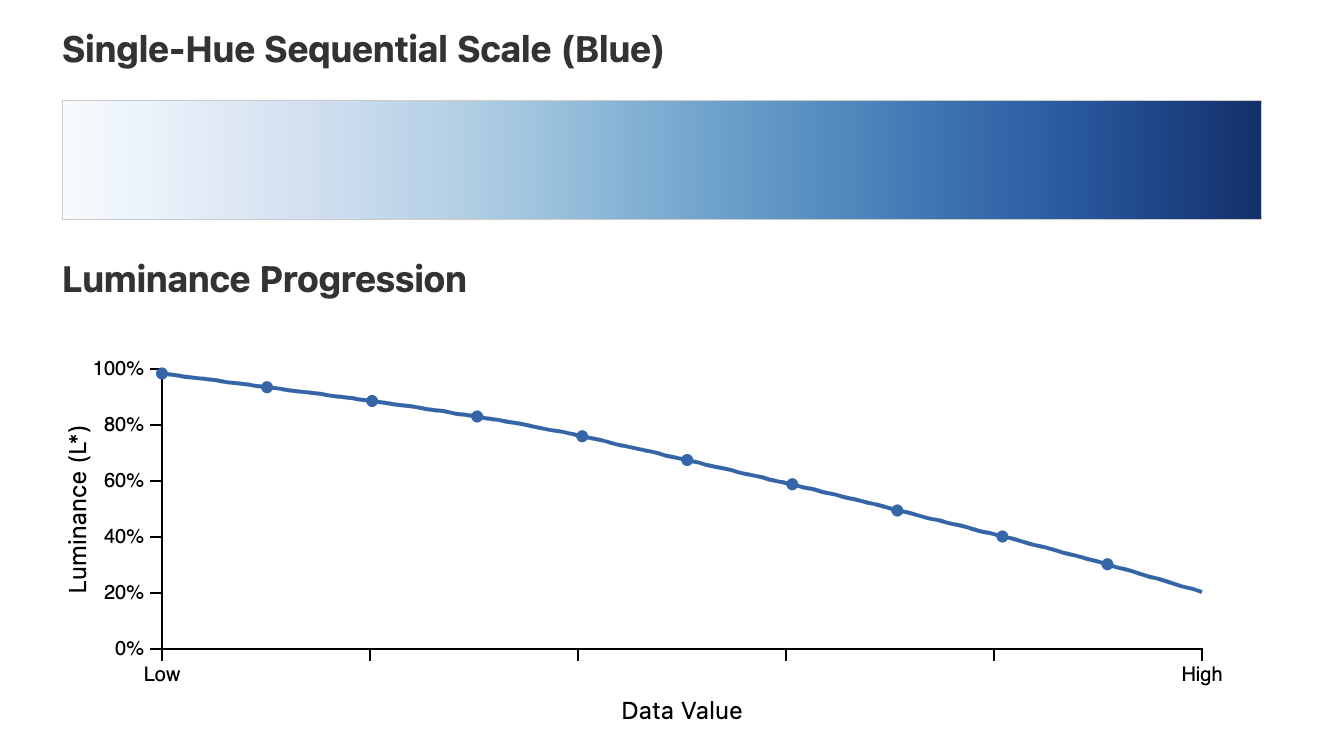

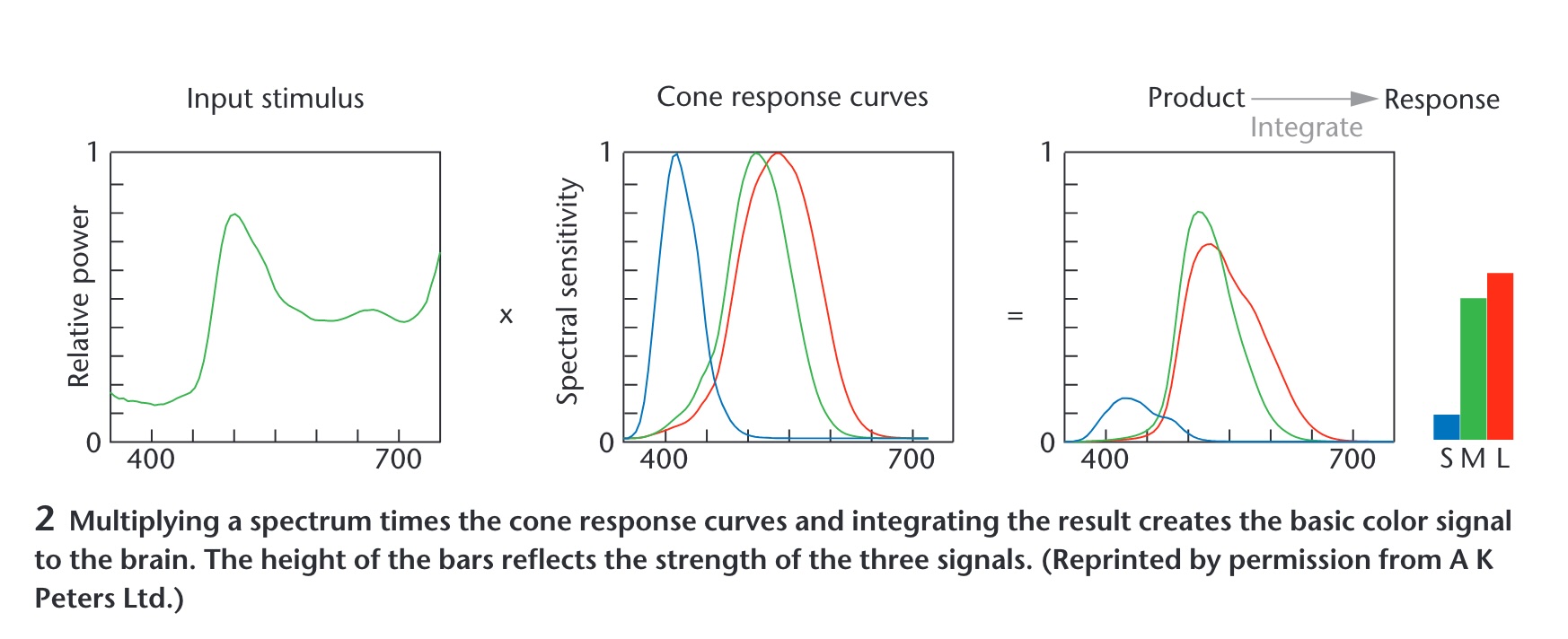

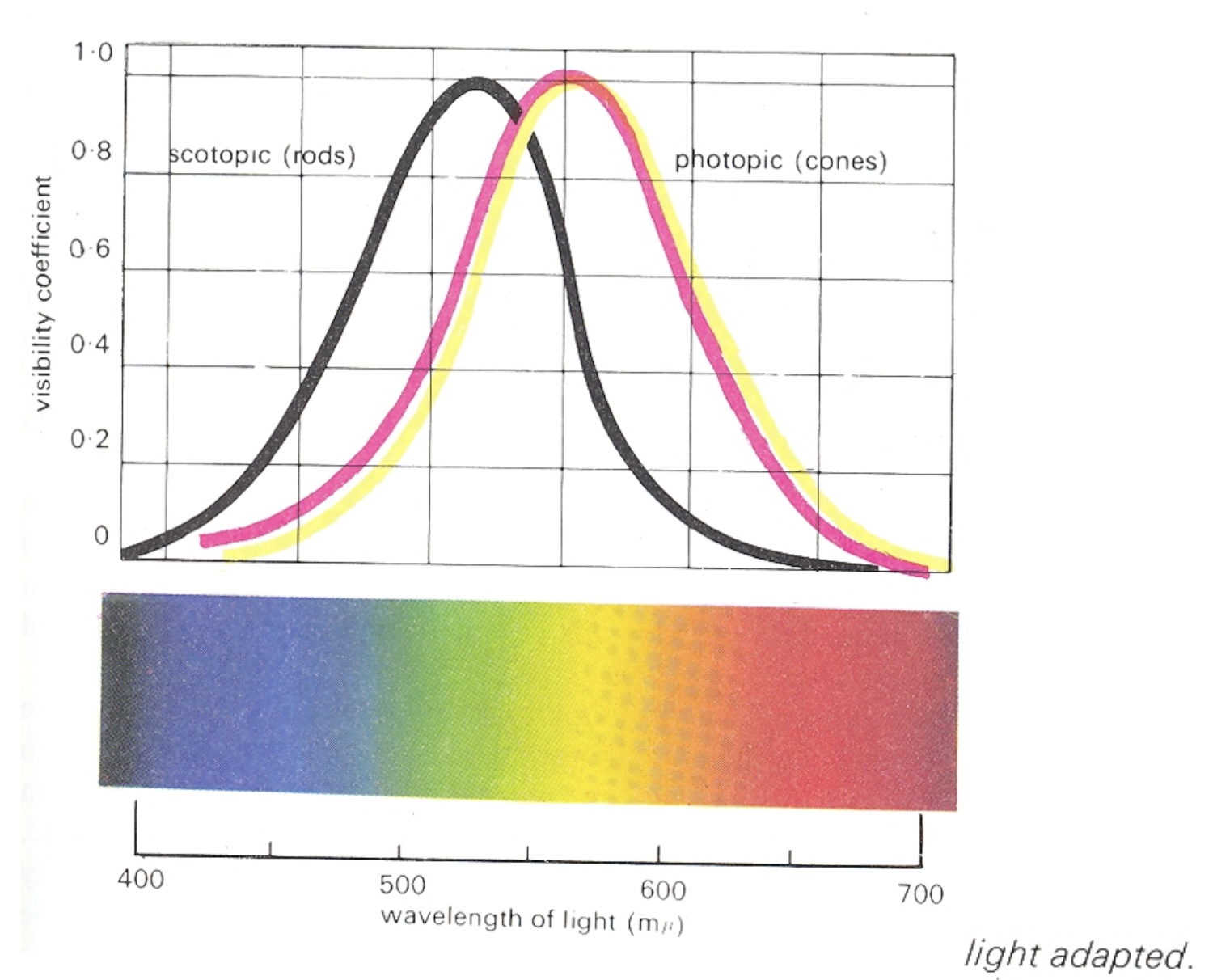

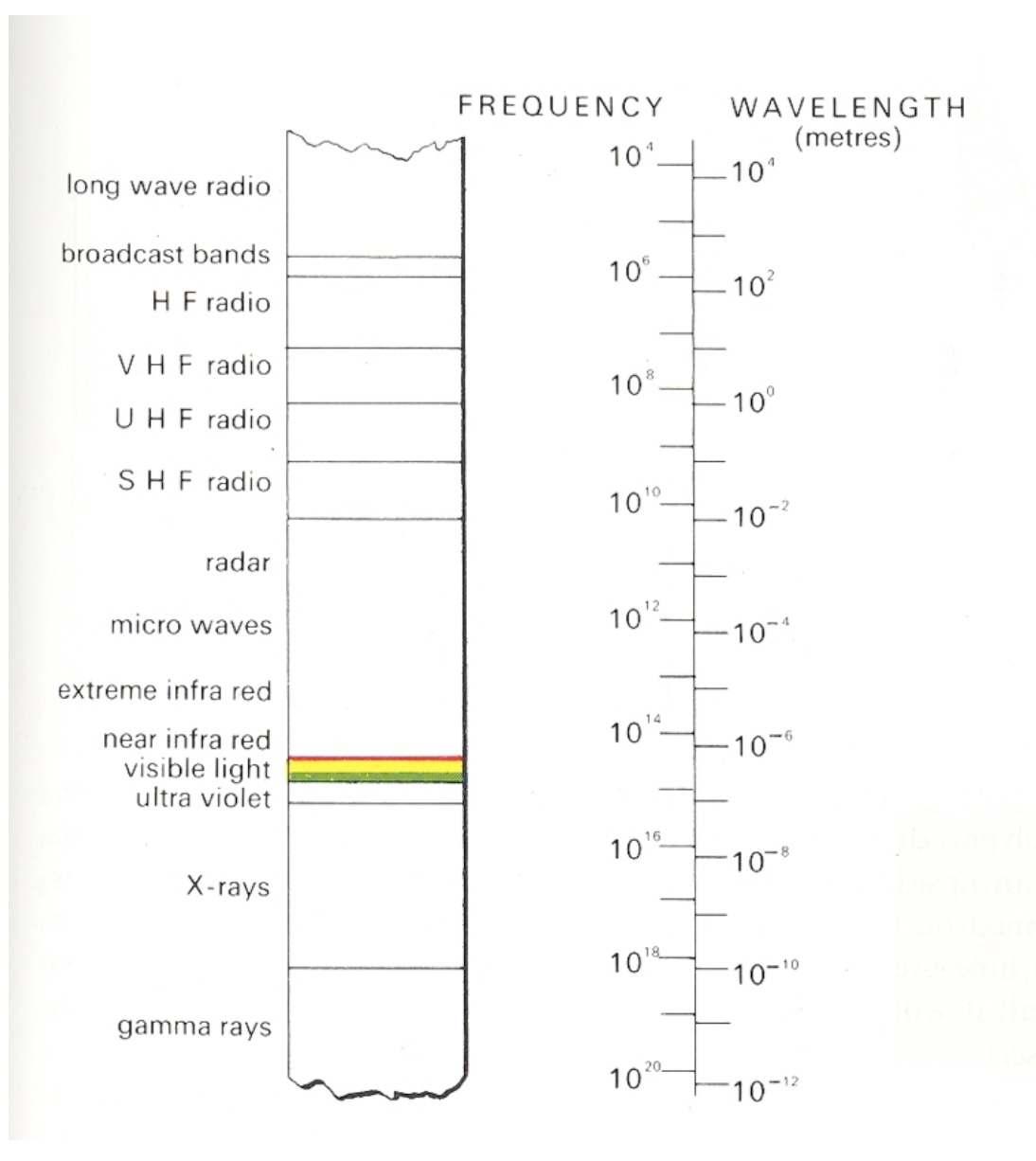

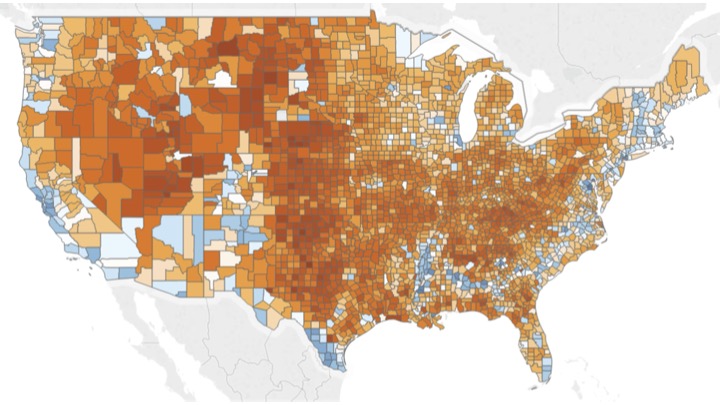

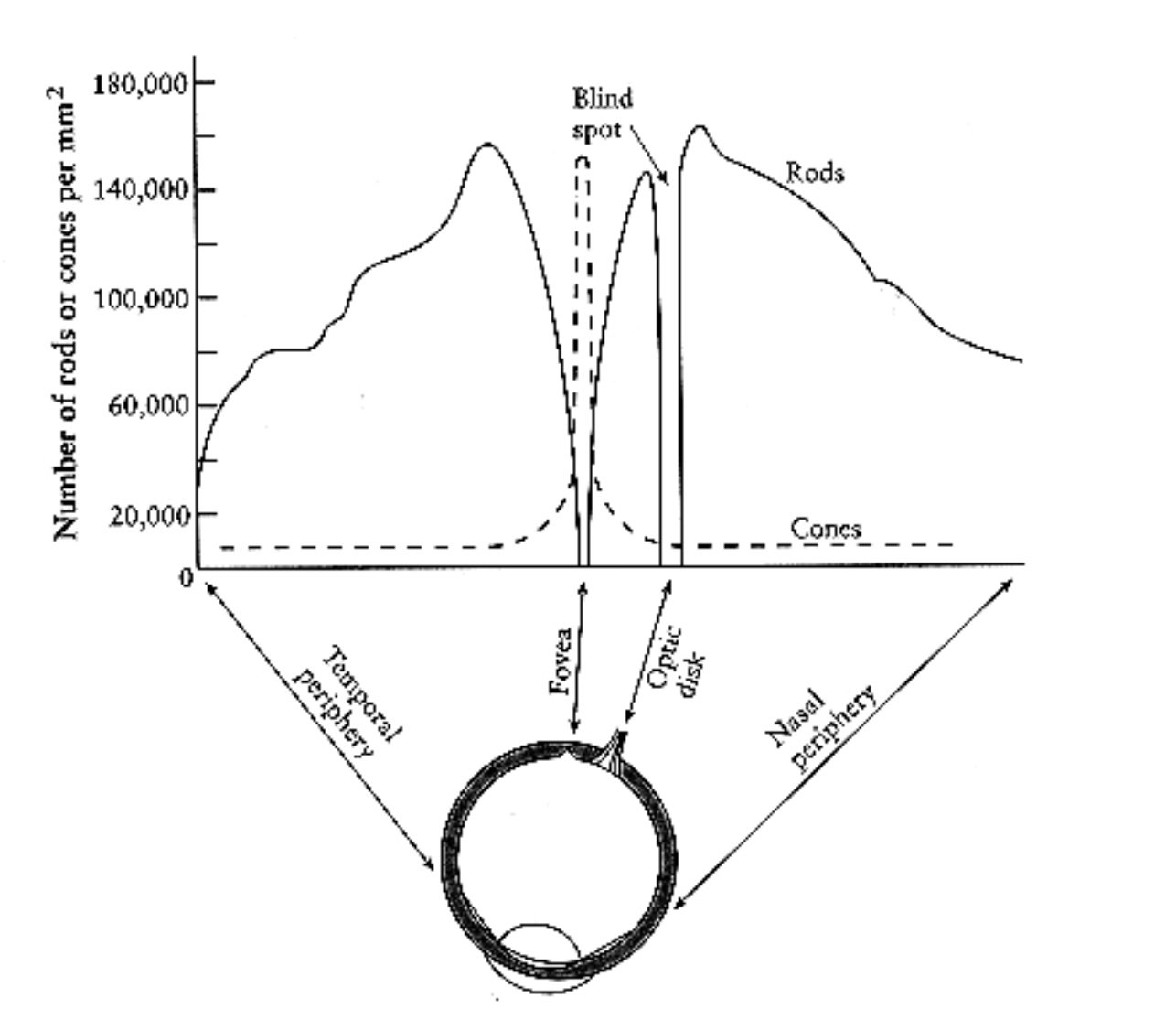

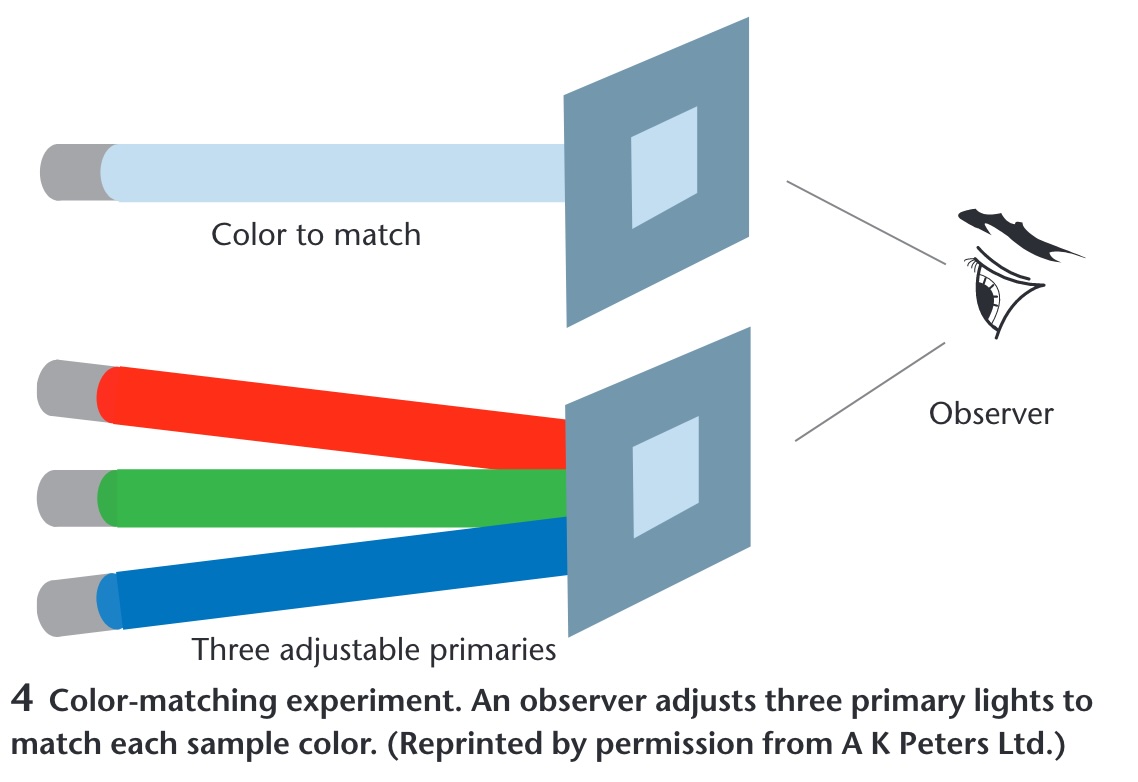

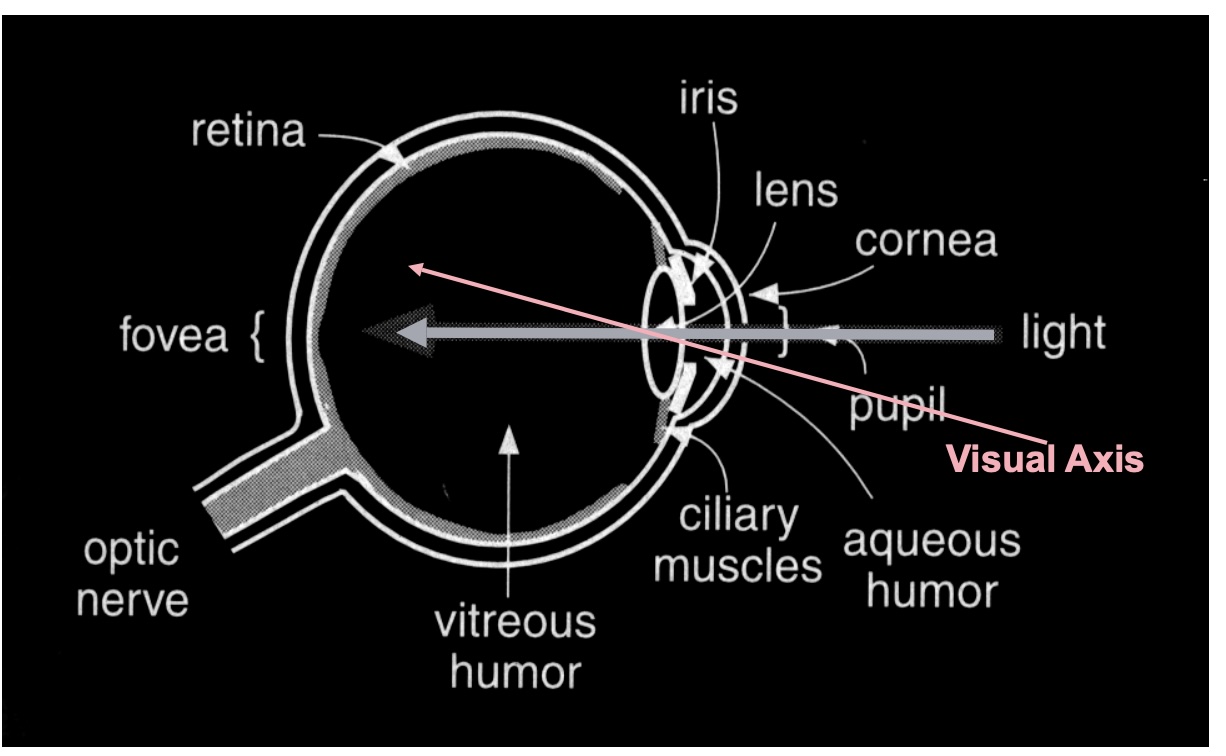

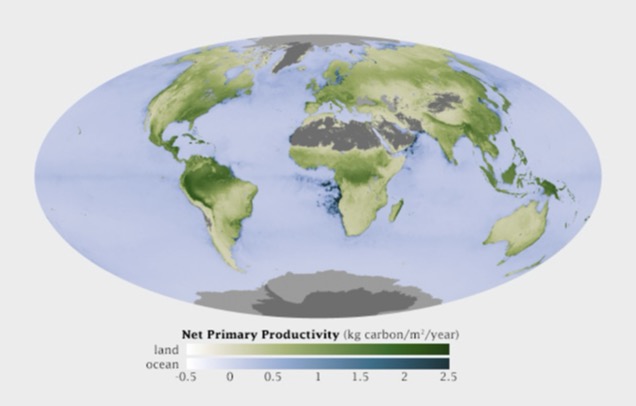

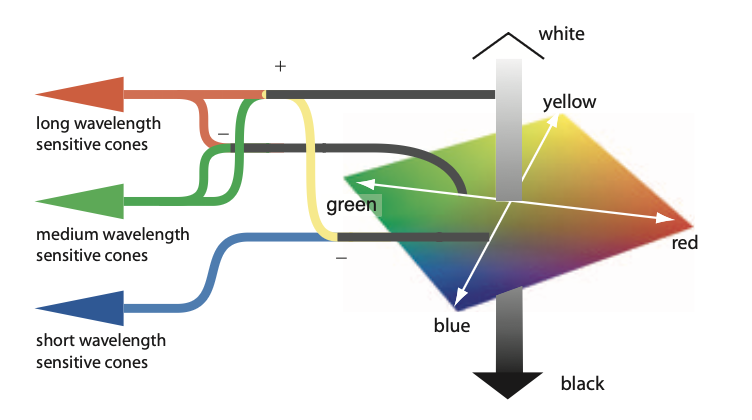

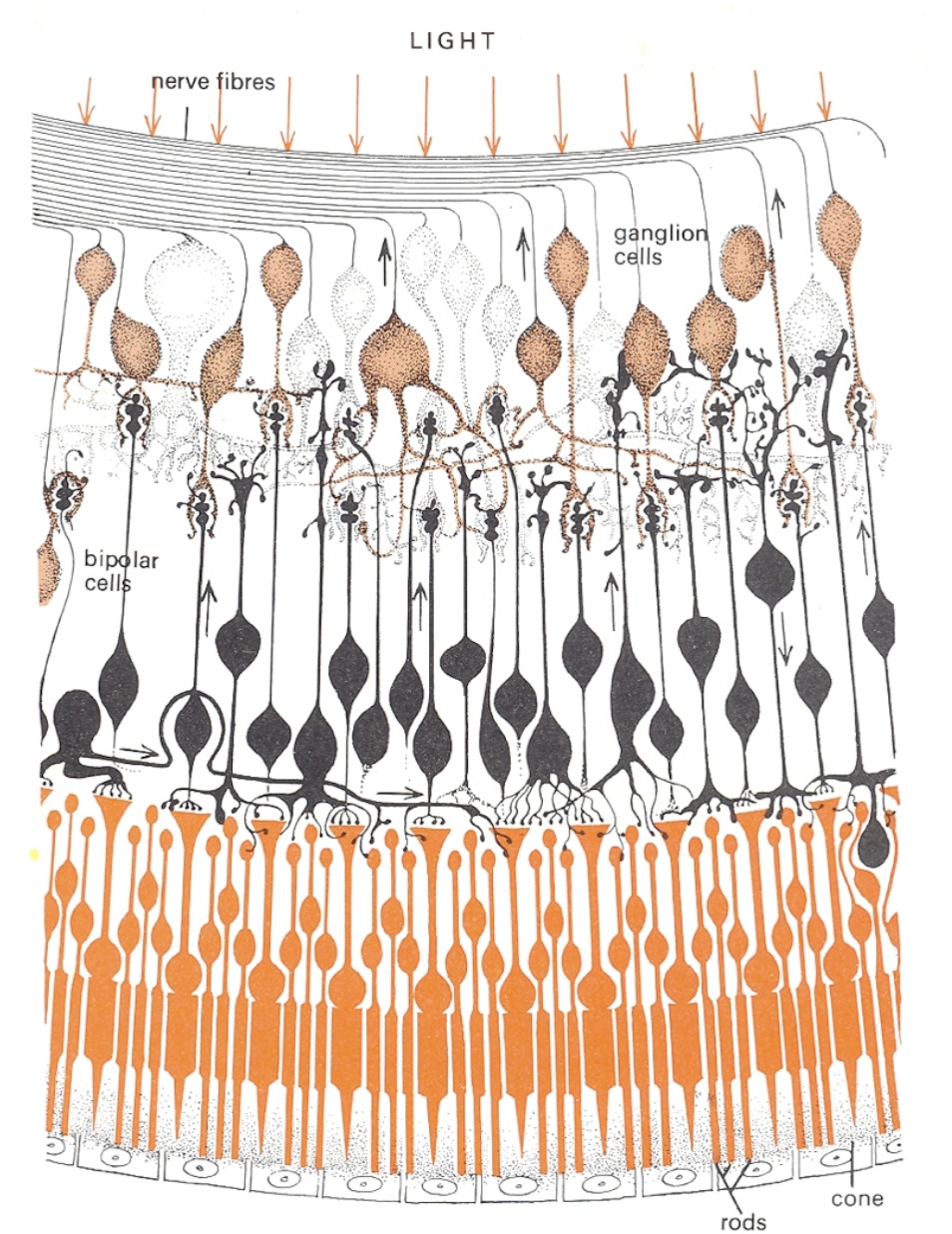

:::: {.columns} ::: {.column width="50%"} ### Part 1: Color Theory - Physics and physiology of color - How humans perceive color - Color spaces and models - Perceptual principles ::: ::: {.column width="50%"} ### Part 2: D3 Implementation - Color scales in D3 - Sequential, diverging, categorical - Interpolation methods - Accessibility and best practices ::: :::: ::: {.notes} This lecture bridges the gap between the science of color perception and practical implementation in D3. We follow a logical progression: First understanding the biology and physics (WHY colors work the way they do), then perception theory (HOW humans process color), then design principles (WHAT makes effective color choices), then D3 implementation (HOW to code it), and finally best practices (WHEN to use each approach). This foundation is crucial - without understanding how humans perceive color, you'll make poor design decisions. ::: ## Color in Nature {width="70%"} ::: footer Vasas, V., Lowell, M. C., Villa, J., Jamison, Q. D., Siegle, A. G., Katta, P. K. R., Bhagavathula, P., Kevan, P. G., Fulton, D., Loukola, O. J., Penacchio, O., Tedore, C., & Hanley, D. (2024). [Recording animal-view videos of the natural world using a novel camera system and software package](https://doi.org/10.1371/journal.pbio.3002444). *PLOS Biology*, 22(1), e3002444. Image from [PLOS Biology](https://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.3002444) ::: ::: {.notes} Start with how color evolved in nature for communication and survival. Animals use color for warning signals, mating displays, and camouflage. This sets the stage for understanding that color perception is biological and varies across species - humans see differently than birds or bees. ::: ## The Visible Spectrum {width="80%"} Humans perceive wavelengths from approximately 390-700nm ::: footer Gregory, R.L. (1997). *Eye and Brain: The Psychology of Seeing* (5th ed.). Princeton University Press. ::: ::: {.notes} Explain that the limited range (390–700nm) is due to environmental factors: shorter wavelengths (UV) are highly scattered by Earth's atmosphere, and longer wavelengths (IR) are absorbed by water and lead to molecular vibration rather than electronic excitation. Our peak sensitivity is in the green-yellow region (~555nm), which corresponds to the peak of the solar spectrum at Earth's surface. This is no accident - evolution optimized our vision for the available light in our environment. ::: ## Properties of Light * **Visible range**: 390-700nm * **Luminance has huge dynamic range**: - 0.00003 — Moonless overcast night sky - 30 — Sky on overcast day - 3,000 — Sky on clear day - 16,000 — Snowy ground in full sunlight * **Colors result from spectral curves**: - Dominant wavelength → **Hue** - Brightness → **Lightness** - Purity → **Saturation** ::: {.notes} Key insight: Our eyes handle an enormous dynamic range (100,000:1) through adaptation. This is why absolute luminance values aren't as important as relative contrasts in visualization. The three properties (hue, lightness, saturation) form the basis of the HLS color model, which is more intuitive than RGB for design work. Note that computer screens can only display about 1000:1 contrast ratio, far less than what we can perceive. ::: ## Physiology of the Eye {width="70%"} Light passes through cornea, pupil, lens, and reaches the retina ::: footer Gregory, R.L. (1997). *Eye and Brain: The Psychology of Seeing* (5th ed.). Princeton University Press. ::: ## The Retina Structure {width="70%"} Multiple layers of cells process visual information before sending to brain ::: footer Gregory, R.L. (1997). *Eye and Brain: The Psychology of Seeing* (5th ed.). Princeton University Press. ::: ## Photoreceptors: Rods and Cones ### Rods - Active at low light levels (scotopic vision) - Only one wavelength-sensitivity function - ~120 million in human eye ### Cones - Active at normal light levels (photopic vision) - Three types with different peak sensitivities - ~6 million in human eye - Concentrated in fovea ## Cone Sensitivity Curves {width="70%"} Three types of cones: S (short/blue), M (medium/green), L (long/red) ::: footer Stone, M. (2005). [Representing Color as Three Numbers](../refs/Stone_2005_Representing_Colors_Three_Numbers.pdf). *IEEE Computer Graphics and Applications*, 25(4), 78-85. ::: ::: {.notes} Critical slide! This is the foundation of trichromatic color theory. Note the overlapping sensitivity curves - this is why we can't see "pure" wavelengths. The brain interprets the relative activation of all three cone types. Point out that the L and M curves are very close, which is why red-green colorblindness is most common. ::: ## Density of Cones Across Retina {width="60%"} Highest density in fovea (center of vision) ::: footer Gregory, R.L. (1997). *Eye and Brain: The Psychology of Seeing* (5th ed.). Princeton University Press. ::: ::: {.notes} Emphasize the importance of the fovea (the central 2° of vision). This is where acuity and color discrimination are highest - cone density reaches 150,000 per mm². This biological fact explains why legends and critical information should be placed centrally or made salient enough to attract foveal attention. Teaching Point: When the visualization requires reading fine detail or discerning subtle color differences, the viewer must consciously shift their gaze. This is why we can't rely on peripheral vision for detailed color work - the cone density drops dramatically outside the fovea. Practical implication: Don't put critical color-coded information in the periphery of a visualization. ::: ## Rods vs. Cones Sensitivity {width="70%"} Rods more sensitive in low light; cones provide color vision ::: footer Gregory, R.L. (1997). *Eye and Brain: The Psychology of Seeing* (5th ed.). Princeton University Press. ::: ## How We Perceive Color {width="70%"} Color perception results from brain's interpretation of cone responses ::: footer Stone, M. (2005). [Representing Color as Three Numbers](../refs/Stone_2005_Representing_Colors_Three_Numbers.pdf). *IEEE Computer Graphics and Applications*, 25(4), 78-85. ::: ## Opponent Process Theory :::: {.columns} ::: {.column width="50%"} ### Three Opponent Channels **Color Opposition:** - 🔴 Red ↔️ Green 🟢 (cannot see "reddish-green") - 🔵 Blue ↔️ Yellow 🟡 (cannot see "yellowish-blue") - ⚫ Black ↔️ White ⚪ (luminance channel) **Key Insights:** - Explains why we see afterimages in complementary colors - Processed in retinal ganglion cells and LGN - Some cells excited by red, inhibited by green (and vice versa) - Explains unique hues: red, green, blue, yellow ::: ::: {.column width="50%"} {width="100%"} ::: :::: ::: footer Hering, E. (1964). *Outlines of a Theory of the Light Sense*. Harvard University Press. (Original work published 1920); Hurvich, L. M., & Jameson, D. (1957). An opponent-process theory of color vision. *Psychological Review*, 64(6), 384-404. ::: ::: {.notes} This is THE theory that bridges trichromatic theory (3 cone types) with how we actually experience color. The opponent channels are why we have four unique hues (red, green, blue, yellow) even though we have three cone types. Modern color spaces like LAB are built on this principle - L for luminance, A for red-green, B for blue-yellow. **The Neural Processing:** In V1 (primary visual cortex), the raw signals from the cones in the retina are transformed. Some neurons compute differences between red- and green-sensitive cone signals. Some neurons compute the sum of red- and green-sensitive cones. Still others compute yellow-blue differences. The result is three kinds of color signals that are called color-opponent channels. This transformation happens early in visual processing - starting in retinal ganglion cells and continuing through the lateral geniculate nucleus (LGN) to V1. ::: ## Opponent Process Applications ### Practical Impact: - **Color space design**: LAB uses opponent channels (A = red-green, B = blue-yellow) - **Categorical perception**: Explains why we naturally group colors into categories - **Accessible color choices**: Understanding oppositions guides colorblind-safe palettes ### Visual Demonstrations: 1. **Afterimage demonstration** - Stare at red dot → see green afterimage 2. **Opponent channel diagram** - Neural wiring showing R+/G- and B+/Y- cells 3. **Color wheel showing oppositions** - Traditional wheel with opponent pairs 4. **Impossible colors** - Why we can't see reddish-green ::: footer Hering, E. (1964). *Outlines of a Theory of the Light Sense*. Harvard University Press. (Original work published 1920); Hurvich, L. M., & Jameson, D. (1957). An opponent-process theory of color vision. *Psychological Review*, 64(6), 384-404. ::: ::: {.notes} Demo: Have students stare at a red square for 30 seconds, then look at white - they'll see green! This isn't a "trick" - it's fundamental to how our visual system works. Fun fact: some people claim they can see "impossible colors" like reddish-green using special viewing conditions, but this is controversial. ::: ## Color Matching Experiments {width="70%"} Foundation of color theory: any color can be matched with three primaries ::: footer Stone, M. (2005). [Representing Color as Three Numbers](../refs/Stone_2005_Representing_Colors_Three_Numbers.pdf). *IEEE Computer Graphics and Applications*, 25(4), 78-85. ::: ::: {.notes} Explain that this is the empirical basis for all modern color spaces. The key finding from these experiments (starting with Thomas Young in 1801 and refined by Maxwell and others) is that the human visual system is 3-dimensional (trichromatic). This confirms that any physical color can be replicated by mixing three primary lights, leading directly to the RGB model used in computers. Important: Some colors require "negative" amounts of a primary (subtracting light), which is why no three real primaries can produce all visible colors - this led to the development of the CIE XYZ color space with imaginary primaries. ::: ## Color Models for Visualization ### Trichromacy Humans perceive colors through three channels ### Most useful color description for visualization: - **Hue**: What color (red, blue, green...) - **Saturation**: Purity of color - **Luminance/Lightness**: Brightness ::: {.notes} This is where we transition from biology to design principles. These three dimensions map to how we actually think about color. Luminance is the strongest channel for ordered data (we easily see light-to-dark progression). Hue is best for categorical distinctions (red vs blue vs green). Saturation is the weakest channel - hard to judge precise values. This hierarchy guides our encoding choices. ::: ## Just Noticeable Difference (JND) ### The smallest detectable difference in a stimulus **For Color:** - **Luminance**: **`~1-2%`** change detectable - **Hue**: Varies by wavelength (most sensitive in blue-green) - **Saturation**: **`~5-10%`** change needed **Implications for Visualization:** - Need sufficient steps between colors in a scale - Can't encode too many distinct values - Background affects perception (simultaneous contrast) ::: footer Ware, C. (2012). *Information Visualization: Perception for Design* (3rd ed.). Morgan Kaufmann. Chapter 4. ::: ::: {.notes} JND is fundamental to color scale design. It determines how many distinct values you can encode. For continuous scales, you want steps larger than JND to be clearly distinguishable. This is why we can only reliably encode about 5-7 distinct colors, or about 7-10 distinct luminance levels. The background color affects JND - a color that's distinguishable on white might not be on gray. Ware's book provides the definitive treatment of JND in visualization contexts. ::: ## How Do We Use Color in Visualization? Two primary purposes: :::: {.columns} ::: {.column width="50%"} ### 1. Quantify Show numerical values ::: ::: {.column width="50%"} ### 2. Label Distinguish categories ::: :::: ## Color to Quantify {width="80%"} Mapping numerical values to color intensity or hue ::: {.notes} Focus: Emphasize that for quantification, we are primarily encoding value differences using the Luminance/Lightness channel, as it is perceptually ordered and robust. Hue is generally a weak channel for conveying precise numerical value differences - people cannot reliably order hues or judge relative magnitudes based on hue alone. The map shown uses a single-hue progression (likely blue) where darker = more. This works because luminance has a natural ordering. Multi-hue scales can work (like Viridis) but ONLY if luminance increases monotonically. ::: ## Color to Label {width="80%"} Using distinct colors to represent different categories ::: {.notes} Focus: Emphasize that for labeling (categories), we maximize Hue differences and use similar Lightness/Saturation across all categories. The goal is maximum difference (discriminability) without any color seeming more important (uniform saliency). In the transit map shown, each line has a distinct hue but similar visual weight. Common mistake: Using both bright and pastel colors together - the bright ones will dominate attention. Keep saturation consistent unless you intentionally want to highlight certain categories. ::: ## Quantitative Color Scales ### Desired Properties: - **Uniformity**: Value difference = Perceived difference - **Discriminability**: As many distinct values as possible ### Challenge: Human perception is non-linear! ::: {.notes} This is a key insight students often miss. Equal steps in RGB values don't produce equal perceptual steps. This is why we need perceptually uniform color spaces like LAB or HCL. Use the example of yellow appearing brighter than blue even at the same RGB intensity. ::: ## Single Hue Sequential Scales Best for quantitative data with natural ordering {width="90%"} **Key Insight:** The luminance (L*) channel decreases monotonically from light to dark, creating the perception of ordered values ::: {.notes} This visualization perfectly demonstrates why single-hue sequential scales work. The top shows the actual color scale, while the bottom graph reveals the underlying mechanism: a steady, monotonic decrease in luminance from ~100% to ~20%. This is what our visual system interprets as "less to more" or "low to high". The other channels (hue and saturation) remain relatively constant. Students should understand that it's the luminance change, not the "blueness," that encodes the data values. ::: ## Categorical Color Scales For nominal/categorical data without inherent order {width="70%"} ### Design Goals: - **Uniform saliency**: Nothing stands out unintentionally - **Maximum discriminability**: Each category clearly distinct ## Categorical Scale Limits ### How many distinct colors can we use effectively? Research suggests: **5-10 distinct categories maximum** Beyond this limit: - Colors become confusable - Need additional encoding (shape, pattern) - Consider grouping categories ::: footer Healey, C.G. (1996). [Choosing effective colours for data visualization](https://ieeexplore.ieee.org/document/567774). IEEE Visualization '96, pp. 263-270. ::: ::: {.notes} Reference the Magic Number 7 ± 2 rule (Miller's Law, 1956) for cognitive load. Beyond 5-7 categories, users stop instantly recognizing differences (pre-attentive processing) and must rely on a legend, which slows down analysis dramatically. Healey's research confirmed this specifically for color. Alternatives when you have too many categories: (1) Group data into super-categories with related sub-hues, (2) Use interactivity - show only relevant categories on demand (filtering/highlighting), (3) Apply texture or shape as redundant encoding, (4) Use "focus + context" - highlight important categories and gray out others, (5) Consider if all categories really need to be shown simultaneously. Remember: Every time users look at the legend, they break their analysis flow. ::: ## Diverging Color Scales For data with meaningful midpoint (zero, average, neutral) :::: {.columns} ::: {.column width="50%"}  Sequential scale obscures the critical 50% threshold ::: ::: {.column width="50%"}  Diverging scale clearly shows above/below threshold ::: :::: ::: footer Data from [County Level Election Results](https://github.com/tonmcg/County_Level_Election_Results_12-16) ::: ::: {.notes} Perfect example of why choosing the right scale matters! The left map makes it hard to see which counties voted majority Republican vs Democrat. The diverging scale immediately reveals the pattern. Other good use cases: temperature anomalies (above/below average), profit/loss, survey responses (agree/disagree). Key insight: the midpoint should be meaningful, not arbitrary. ::: ## Color Context Effects :::: {.columns} ::: {.column width="50%"} ### Simultaneous Contrast The same color appears different depending on surrounding colors **Key Effects:** - Colors appear lighter on dark backgrounds - Colors appear more saturated next to gray - Complementary colors enhance each other **Design Implications:** - Test colors in context, not isolation - Be consistent with backgrounds - Use borders/whitespace to separate regions ::: ::: {.column width="50%"}  ::: :::: - Consider the whole visualization, not just the palette ::: footer Albers, J. (1963). *Interaction of Color*. Yale University Press; Adelson, E.H. (1993). Perceptual organization and the judgment of brightness. *Science*, 262(5142), 2042-2044. ::: ::: {.notes} This is why color palettes that look good in a swatch panel might fail in your visualization. The classic example: a gray square looks yellowish on a blue background and bluish on a yellow background. For maps, this means adjacent regions can affect color perception. Solution: add thin white borders between regions, or test your palette with actual data patterns. Albers' classic work and Adelson's checker shadow illusion are foundational demonstrations of these effects. ::: ## Semantic Color Associations ### Cultural and Contextual Meanings :::: {.columns} ::: {.column width="50%"} **Universal Associations:** - **Red**: Heat, danger, stop 🔥 🛑 - **Blue**: Cold, water, calm 💧 ❄️ - **Green**: Nature, growth, go 🌱 ✅ - **Yellow**: Caution, energy ⚠️ ⚡ ::: ::: {.column width="50%"} **Domain-Specific:** - **Finance**: Red = loss (↓), Green = profit (↑) - **Politics**: Red/Blue = parties (varies by country!) - **Temperature**: Blue = cold ❄️, Red = hot 🌡️ - **Health**: Red = critical 🚨, Yellow = warning ⚠️, Green = normal ✅ ::: :::: ::: footer Lin, S., Fortuna, J., Kulkarni, C., Stone, M., & Heer, J. (2013). [Selecting Semantically-Resonant Colors for Data Visualization](../refs/Lin_Fortuna_Kulkarni_Stone_Heer_2013_Selecting_Semantically_Resonant_Colors.pdf). Computer Graphics Forum, 32(3), 401-410. ::: ::: {.notes} Leverage semantic associations when they help, but be aware they're not universal. In China, red means prosperity. In finance, Western markets use red for losses, but East Asian markets use red for gains! Always consider your audience. Sometimes you should intentionally break conventions - use blue for hot if you're showing cooling needs, not temperature. Lin et al.'s research provides empirical data on color-concept associations. ::: ## Color Blindness Considerations ~10% of males and ~1% of females have color vision deficiencies {width="80%"} ::: footer Oliveira, M. "Towards More Accessible Visualizations for Color-Vision-Deficient Individuals" Computing in Science & Engineering, 2013 ::: ::: {.notes} Emphasize that this means in a typical classroom, 2-3 students likely have some form of color vision deficiency. Red-green is most common (deuteranopia and protanopia). Always design with this in mind - use redundant encoding (shape, pattern) and test with simulators. The Viridis colormap was specifically designed to be perceptually uniform AND colorblind-safe. ::: ## Color Vision Simulators :::: {.columns} ::: {.column width="50%"} ### Tools for Testing Accessibility **Browser Extensions:** - [Colorblinding](https://chrome.google.com/webstore/detail/colorblinding) (Chrome) - [Let's Get Color Blind](https://addons.mozilla.org/en-US/firefox/addon/let-s-get-color-blind/) (Firefox) - Real-time webpage simulation **Design Software Plugins:** - Adobe Photoshop: View → Proof Setup → Color Blindness - Sketch: Stark plugin for accessibility testing - Figma: Able plugin for color vision simulation **Online Simulators:** - [Coblis](https://www.color-blindness.com/coblis-color-blindness-simulator/) - [Sim Daltonism](https://michelf.ca/projects/sim-daltonism/) (macOS app) - Upload images for instant simulation ::: ::: {.column width="50%"}  ::: :::: **Best Practice:** Always test your visualizations with simulators during development, not after ::: {.notes} Demo one of these tools live if possible! Show how a seemingly clear red/green encoding becomes indistinguishable. Point out that deuteranopia (missing green cones) affects ~6% of males, protanopia (missing red cones) ~2%, and tritanopia (missing blue cones) is rare (~0.01%). The tools are free and take seconds to use - there's no excuse for not testing. Emphasize: "If you're not testing for colorblindness, you're excluding 10% of your male audience." ::: ## Color Spaces ### RGB (Red, Green, Blue) - Device-oriented - Not perceptually uniform - Common in programming ### HSL/HSV (Hue, Saturation, Lightness/Value) - More intuitive for humans - Better for color selection - Still not perceptually uniform ### LAB/LCH - Perceptually uniform - Better for interpolation - Used in professional design ::: {.notes} Critical concept: RGB is how devices work, but not how humans perceive. Equal steps in RGB space don't produce equal perceptual steps - this is why RGB interpolation looks muddy. HSL is better for picking colors manually but still has issues (yellow appears brighter than blue at same L value). LAB/LCH are based on human perception studies and produce smooth gradients. Always use LAB or HCL for color interpolation in visualizations. ::: ## Perceptual Color Spaces ### Why Perceptual Uniformity Matters In RGB space, equal numerical steps ≠ equal perceptual steps ```javascript // RGB interpolation can produce muddy colors d3.interpolateRgb("red", "blue") // LAB interpolation maintains perceptual uniformity d3.interpolateLab("red", "blue") // HCL even better for many visualizations d3.interpolateHcl("red", "blue") ``` ::: {.notes} Demo this live if possible! RGB interpolation between red and blue passes through muddy purple. LAB maintains brightness consistency. HCL (Hue-Chroma-Luminance) follows the color wheel, producing vibrant intermediates. For diverging scales, HCL is often best. For sequential scales, LAB works well. The key is that perceptual uniformity means your data differences map linearly to perceived color differences. ::: ## Design Implications of Color Processing ### From Biology to Design Our visual system's structure creates constraints and opportunities: **Three Opponent Channels Process Color:** - **Luminance (Black-White)**: Best for detail and patterns - **Red-Green**: Categorical distinctions - **Yellow-Blue**: Categorical distinctions (weaker than red-green) **Key Biological Facts:** - Far fewer blue-sensitive cones (~2% of total) - Blue cones less sensitive than red/green - Chromatic channels cannot convey fine detail ::: {.notes} This bridges the gap between understanding the biology and applying it to design. The three opponent channels have very different capabilities - luminance is king for detail, while chromatic channels are better for categorical coding. The scarcity of blue cones explains why blue is problematic for fine detail. ::: ## Luminance Contrast is Critical for Detail ### Text and Fine Details Require Strong Luminance Contrast **ISO Standard Recommendation:** - **Minimum 3:1 luminance ratio** between text and background - Chromatic channels (red-green, yellow-blue) **cannot** convey fine detail **Common Mistakes:** - ❌ Blue text on dark backgrounds (illegible - lacks luminance contrast) - ❌ Red text on green background (relies only on chromatic contrast) - ✅ Black text on white (maximum luminance contrast) - ✅ High-contrast text with color used sparingly for emphasis ::: {.notes} This is one of the most practical design guidelines. Many students think "red on green should work because they're opposite" - but if the luminance values are similar, it fails for small text. Demo if possible: show red text on green background with matched luminance - it's nearly unreadable. Blue on dark is particularly bad because blue cones are scarce and less sensitive. ::: ## Color Coding Limitations ### How Many Colors Can Users Distinguish? **Research Finding: Only 6-12 colors work reliably as codes** **Best Practice - Use Unique Hues First:** 1. 🔴 **Red** 2. 🟢 **Green** 3. 🟡 **Yellow** 4. 🔵 **Blue** 5. ⚫ **Black** 6. ⚪ **White** **Why These Work Best:** - Most easily learned and identified - Correspond to opponent channel structure - Universal across cultures (mostly) **Beyond 6 categories?** Add redundant encoding (shape, pattern, labels) ::: {.notes} The 6-12 limit is empirically validated. The unique hues are special because they align with our opponent process channels - they're the "purest" examples of each channel. After these 6, you can add orange, purple, brown, pink, etc., but discriminability drops. This is why Tableau and other tools default to 6-10 color palettes. Real-world tip: If you have 20 categories, color alone won't work - consider grouping or interactive filtering. ::: ## Size-Dependent Color Choices ### Small Symbols vs. Large Areas :::: {.columns} ::: {.column width="50%"} ### Small Symbols/Text **Requirements:** - Strong, **saturated colors** - High **luminance contrast** with background - Avoid subtle color differences **Examples:** - Points on scatter plots - Line graphs - Small icons - Text labels ::: ::: {.column width="50%"} ### Large Areas **Requirements:** - **Subdued, low-saturation** colors - Avoid overwhelming the design - Prevent contrast effects on smaller elements **Examples:** - Background fills - Map regions - Area charts - Dashboard panels ::: :::: ::: {.notes} This is counterintuitive for many students. Bright saturated colors work great for small elements but become overwhelming for large areas. Large saturated areas also create strong simultaneous contrast effects that distort perception of smaller elements. Think of heatmaps - the cells should be relatively muted, while outliers or highlights can be saturated. Geographic maps are a classic example: countries should be pastel/muted, while city markers can be bright and saturated. ::: ## Simultaneous Contrast & Design Practice ### Context Affects Color Perception **Simultaneous Contrast Effects:** - Backgrounds affect small color patches more than vice versa - Same color appears different on different backgrounds - Critical for visualization design **Highlighting Best Practices:** - ✅ **Maintain or increase luminance contrast** for emphasis - ❌ Common mistake: Reducing contrast (e.g., light text on light highlight) - ✅ Dark text on light highlight, or light text on dark highlight **Shape and Color Together:** - Light-colored patterns interfere **less** with shape perception - Dark saturated patterns dominate and obscure 3D shape ::: footer Ware, C. (2022). *Visual Thinking for Information Design* (2nd ed.). Morgan Kaufmann. ::: ::: {.notes} PowerPoint's default highlighting (yellow background) often reduces contrast by making black text appear lighter - this is exactly wrong! Good highlighting increases luminance difference. For 3D visualizations colored by data values, use light colors so shading cues for shape remain visible. The simultaneous contrast demo (gray squares on different backgrounds) should be shown if available - it's a powerful demonstration that context is everything in color perception. ::: ## D3 Color Scales ### Sequential Scales ```javascript // Single hue const blueScale = d3.scaleSequential() .domain([0, 100]) .interpolator(d3.interpolateBlues); // Multi-hue const viridisScale = d3.scaleSequential() .domain([0, 100]) .interpolator(d3.interpolateViridis); ``` ### Built-in Color Schemes: - Blues, Greens, Reds, Purples, Oranges, Greys - Viridis, Inferno, Magma, Plasma (perceptually uniform) ## D3 Diverging Scales ```javascript // Diverging scale with custom midpoint const divergingScale = d3.scaleDiverging() .domain([−50, 0, 100]) // min, midpoint, max .interpolator(d3.interpolateRdBu); // Common diverging schemes: // RdBu (red-blue), RdYlGn (red-yellow-green), // BrBG (brown-green), PuOr (purple-orange) ``` Perfect for: - Temperature anomalies - Election results - Profit/loss - Any data with meaningful zero ::: {.notes} Guide students to choose an interpolator like d3.interpolateRdBu because it is perceptually uniform around the critical midpoint, preventing the muddy gray region that RGB interpolation creates. The domain([min, midpoint, max]) structure is critical - the midpoint should be meaningful (0 for anomalies, average for deviations, 50% for proportions). Common mistake: Using diverging scales when data doesn't have a meaningful midpoint. If your data is all positive (e.g., 0-100%), use sequential instead. The midpoint in the interpolator gets white/neutral color, so it must represent a true neutral value in your data. ::: ## D3 Categorical Scales ```javascript // Ordinal scale with color scheme const categoryScale = d3.scaleOrdinal() .domain(["A", "B", "C", "D"]) .range(d3.schemeCategory10); // Available categorical schemes: // schemeCategory10 - 10 distinct colors // schemeSet1 - 9 colors (colorblind safe) // schemeSet2 - 8 colors (print friendly) // schemeSet3 - 12 colors (pastel) // schemePaired - 12 colors (paired) ``` ::: {.notes} Important: schemeSet1 is colorblind-safe but has very saturated colors that can be overwhelming. schemeSet2 is better for professional presentations. schemePaired is great when you have natural pairs in your data (e.g., before/after, male/female). Always test your chosen scheme with actual data - what looks good in isolation may not work with your specific visualization. ::: ## Color Scale Best Practices :::: {.columns} ::: {.column width="50%"} ### Sequential Data ✅ Use single or multi-hue sequential ❌ Don't use rainbow scales ### Categorical Data ✅ Use distinct hues with similar saturation/lightness ❌ Don't use more than ~8 categories ::: ::: {.column width="50%"} ### Diverging Data ✅ Use when there's a meaningful midpoint ❌ Don't use for purely positive data ### Accessibility ✅ Test with colorblind simulators ✅ Provide redundant encoding when possible ::: :::: ::: {.notes} Use this slide to review common student errors. Sequential Data: Rainbow maps are the #1 mistake—they create false edges where the color suddenly shifts (e.g., yellow band appears as a boundary). Show example: weather maps where rainbow creates artificial storm boundaries. Categorical Data: Reiterate that Saturation should be kept consistent across categories to avoid unintended emphasis. If one category is bright red and another is pale blue, the red will dominate. Diverging: Students often use these for data without true midpoints. Accessibility: Not optional - in any professional setting, colorblind-safe design is required, not suggested. ::: ## D3 Data Transformation Scales (Beyond Color) ### Time Scales ```javascript const timeScale = d3.scaleTime() .domain([new Date(2020, 0, 1), new Date(2025, 0, 1)]) .range([0, width]); ``` ### Log Scales ```javascript const logScale = d3.scaleLog() .domain([1, 1000]) .range([0, width]); ``` ### Power Scales ```javascript const sqrtScale = d3.scaleSqrt() // same as scalePow().exponent(0.5) .domain([0, 100]) .range([0, width]); ``` ::: {.notes} Important distinction: These scales transform your data space, not color space. They map data values to positions, sizes, or other visual properties. Time scales understand JavaScript dates and create nice tick marks at meaningful intervals (days, months, years). Log scales are essential for data with large ranges - use when data spans multiple orders of magnitude (e.g., population, income). Square root scales are crucial for encoding data as area - since area grows with radius squared, sqrt scale makes the area proportional to data value, not the radius. ::: ## Quantized Scales Transform continuous domains into discrete ranges ```javascript // Quantize scale - equal intervals const quantizeScale = d3.scaleQuantize() .domain([0, 100]) .range(["low", "medium", "high"]); // Quantile scale - equal quantities const quantileScale = d3.scaleQuantile() .domain(data) .range(["Q1", "Q2", "Q3", "Q4"]); // Threshold scale - custom breakpoints const thresholdScale = d3.scaleThreshold() .domain([30, 70]) .range(["cold", "comfortable", "hot"]); ``` ::: {.notes} Critical for choropleth maps and binned visualizations. Quantize creates equal-width bins (like a histogram). Quantile creates bins with equal numbers of data points - useful for skewed distributions. Threshold gives you complete control over breakpoints - use for meaningful boundaries like freezing point, poverty line, etc. Always show the binning method in your legend! ::: ## Color Interpolation D3 provides multiple interpolation methods: ```javascript // RGB interpolation (can be muddy) d3.interpolateRgb("red", "blue")(0.5); // HSL interpolation (follows hue wheel) d3.interpolateHsl("red", "blue")(0.5); // LAB interpolation (perceptually uniform) d3.interpolateLab("red", "blue")(0.5); // HCL interpolation (best for many cases) d3.interpolateHcl("red", "blue")(0.5); // Cubehelix (rainbow with uniform luminance) d3.interpolateCubehelix("red", "blue")(0.5); ``` ## Creating Custom Color Scales ```javascript // Custom sequential scale const customSequential = d3.scaleSequential() .domain([0, 100]) .interpolator(t => d3.interpolateHcl("#e8f4f8", "#004c6d")(t)); // Custom diverging scale const customDiverging = d3.scaleDiverging() .domain([−1, 0, 1]) .interpolator(t => t < 0.5 ? d3.interpolateHcl("#67001f", "#f7f7f7")(t * 2) : d3.interpolateHcl("#f7f7f7", "#053061")((t - 0.5) * 2)); // Piecewise scale const piecewise = d3.scaleLinear() .domain([0, 50, 100]) .range(["#2166ac", "#f7f7f7", "#b2182b"]); ``` ## Practical Color Guidelines ### For Print - Consider grayscale reproduction - Use ColorBrewer schemes - Test on actual printer ### For Screen - Consider monitor variations - Use sufficient contrast - Test on different devices ### For Accessibility - Use colorblind-safe palettes - Provide alternative encodings - Test with simulators ## Color Tools and Resources ### Online Tools: - [ColorBrewer](https://colorbrewer2.org) - Color schemes for maps - [Accessible Colors](https://accessible-colors.com) - WCAG compliance - [Coblis](https://www.color-blindness.com/coblis-color-blindness-simulator/) - Colorblind simulator ### D3 Resources: - [D3 Scale Chromatic](https://github.com/d3/d3-scale-chromatic) - All color schemes - [Observable Color Notebooks](https://observablehq.com/@d3/color-schemes) - Interactive examples ### Research: - [ColorBrewer Paper](http://colorbrewer2.org/learnmore/schemes_full.html) - Harrower & Brewer - [Viridis Explanation](https://www.youtube.com/watch?v=xAoljeRJ3lU) - Why we need better colormaps ## Common Color Mistakes :::: {.columns} ::: {.column width="50%"} ### 1. Don't Use Rainbow Scales **Why:** Perceptually non-uniform, creates false boundaries **Instead:** Use Viridis or single-hue sequential ### 2. Don't Exceed 7-8 Categories **Why:** Colors become indistinguishable **Instead:** Group data or use interactive filtering ::: ::: {.column width="50%"} ### 3. Don't Ignore Cultural Context **Why:** Red = profit in Asia, loss in West **Instead:** Know your audience, test assumptions ### 4. Don't Use Poor Contrast **Why:** Fails WCAG accessibility standards **Instead:** Test contrast ratios (4.5:1 minimum) ::: :::: ::: {.notes} Show real examples: (1) Rainbow map - point out the artificial yellow band that appears as a boundary but isn't in the data. (2) Too many categories - show a 20-category pie chart where you can't distinguish colors. (3) Context - red in Western culture means "stop/bad" but in Chinese culture can mean "prosperity/good". (4) Poor contrast - show light yellow on white background, fails WCAG standards. ::: ## Lab Preview: Color and Scales in D3 ### Today's Lab Activities: 1. Implement different scale types (linear, log, time) 2. Create color scales for different data types 3. Build a choropleth map with sequential colors 4. Design accessible categorical palettes 5. Test colorblind safety ### Key Concepts to Practice: - Scale domains and ranges - Color interpolation methods - Legends for color scales - Interactive scale adjustments ::: {.notes} The lab will be hands-on with Observable notebooks. Students will see the immediate impact of different color choices. The choropleth exercise is particularly important - it combines everything: data binning, color scales, and geographic visualization. Make sure students test their palettes with the colorblind simulator. Common mistakes to watch for: using too many colors, poor contrast, and forgetting to add legends. ::: ## Putting It All Together ### Example: Temperature Visualization ```javascript // Temperature data with anomalies const tempScale = d3.scaleDiverging() .domain([−10, 0, 10]) // Anomaly in degrees .interpolator(d3.interpolateRdBu) .clamp(true); // Prevent extrapolation // Apply to data svg.selectAll("rect") .data(temperatureData) .enter().append("rect") .attr("fill", d => tempScale(d.anomaly)) .attr("opacity", 0.8); // Slight transparency // Add legend const legend = d3.legendColor() .scale(tempScale) .title("Temperature Anomaly (°C)"); ``` ## Color Gamut and Display Limitations ### Not All Colors Are Equal **Display Constraints:** - **sRGB**: Standard web/monitor gamut (most limited) - **Adobe RGB**: Wider gamut for professional displays - **P3**: Modern displays (iPhone, Mac) - **Print CMYK**: Different gamut than screens **Practical Implications:** - Highly saturated colors may not reproduce - Test on target devices - Provide fallbacks for older displays - Consider print requirements early ::: {.notes} Use the analogy: "Color gamut is the vocabulary of the display." P3 has a richer vocabulary than sRGB - about 25% more colors. A color defined in P3 might be "out of gamut" for an sRGB display and will be clamped to the nearest available color, potentially changing your carefully designed palette. This is essential for professional design where a visualization might be seen on a high-end monitor (designer's machine) but needs to be accessible on standard web displays (user's machine). Action: Always work in or constrain colors to the sRGB space for maximum web compatibility. Test on different devices. For print, convert to CMYK early and adjust - never trust screen colors for print work. Modern CSS supports color-gamut media queries to provide fallbacks. ::: ## Summary: Key Concepts ### Vision & Perception - **Trichromatic vision**: 3 cone types → 3D color space - **Non-uniform perception**: JND varies by channel - **Foveal concentration**: Color discrimination best in center ### Color Uses in Visualization - **Sequential**: Ordered data (light → dark) - **Diverging**: Data with meaningful midpoint - **Categorical**: Distinct groups (max 5-8) ### Accessibility is Essential - **~10% color vision deficiency** (mostly red-green) - **Always provide redundant encoding** - **Test with simulators** before deployment ::: {.notes} These are the foundational concepts that explain WHY we make certain color choices. The biology constrains what's possible; the use case determines what's appropriate; accessibility ensures what's ethical and professional. ::: ## Summary: Implementation & Practices ### D3 Color Implementation - **Perceptual spaces**: Use LAB/HCL for interpolation - **Built-in schemes**: Viridis, ColorBrewer, etc. - **Scale types**: Sequential, diverging, ordinal ### Critical Best Practices - **Avoid rainbow scales** for continuous data - **Maintain uniform saliency** in categories - **Consider display gamut** (sRGB for web) ### Testing Checklist ✓ Colorblind safe? ✓ Prints in grayscale? ✓ Works on different displays? ✓ Context effects considered? ::: {.notes} These are the practical guidelines for implementation. Remember: Less is often more with color. When in doubt, test with real users and real data. Color should enhance understanding, not dominate the visualization. ::: ## Next Week: Deceptive Visualizations ### Topics: - Types of visual deception - Intentional vs. unintentional misleading - Cognitive biases in interpretation - Ethical responsibilities - Case studies from media ### Pre-reading: - Tufte Chapter 2: "Graphical Integrity" - "Truncating the Y-Axis: Threat or Menace?" ## Required Readings ### Core Papers & Resources :::: {.columns} ::: {.column width="50%"} **[Which Color Scale to Use](https://blog.datawrapper.de/which-color-scale-to-use-in-data-vis/)** *Lisa Charlotte Rost, Datawrapper Blog* - Practical guide to choosing color scales - Covers sequential, diverging, and categorical palettes - Real-world examples from data journalism - Interactive examples you can modify **[Modeling Color Difference](../refs/Szafir_2018_Modeling_Color_Difference_Visualization.pdf)** *Szafir, D.A. (2018). IEEE TVCG* - Empirical study of color perception in visualization - Shows RGB interpolation problems - Proposes perceptually-uniform color models - Critical for understanding why we use LAB/HCL ::: ::: {.column width="50%"} **[D3 Scale Chromatic](https://observablehq.com/@d3/color-schemes)** *Observable Interactive Notebook* - Live code examples of all D3 color schemes - Interactive comparisons between scales - Copy-paste ready code snippets - Includes accessibility information ::: :::: ::: {.notes} These three readings form the foundation: Rost gives practical advice, Szafir provides the science behind perceptual uniformity, and the Observable notebook gives hands-on practice. Students should spend most time on the Observable notebook - actually trying the code. ::: ## Optional Readings ### Advanced Color Theory :::: {.columns} ::: {.column width="50%"} **[Somewhere Over the Rainbow](https://idl.cs.washington.edu/papers/quantitative-color/)** *Liu, Y. & Heer, J. (2018). CHI 2018* - Large-scale empirical study (n=9,871 participants) - Quantifies effectiveness of different color scales - Proves why rainbow colormaps are problematic - Recommendations: single-hue and multi-hue scales outperform rainbow **[Color Use Guidelines for Mapping](https://www.personal.psu.edu/cab38/ColorSch/Schemes.html)** *Brewer, C.A. (1994). Cartography and GIS* - Foundation of ColorBrewer tool - Systematic approach to color selection - Addresses print, screen, and colorblind considerations - Still the definitive reference 30 years later ::: ::: {.column width="50%"} **[The Viridis Color Palettes](https://cran.r-project.org/web/packages/viridis/vignettes/intro-to-viridis.html)** *Garnier et al. (2021)* - Story behind the most popular scientific colormap - Perceptually uniform, colorblind-safe, print-friendly - Mathematical derivation and testing methodology **[Color Naming Models for Color Selection](../refs/Heer_Stone_2012_Color_Naming_Models.pdf)** *Heer, J. & Stone, M. (2012). IEEE CG&A* - Data-driven approach to color selection using natural language - Based on XKCD color survey with 3.5 million judgments - Probabilistic model for color naming and selection - Foundation for many modern color tools **Visual Thinking for Information Design** (2nd Edition) *Colin Ware (Morgan Kaufmann, 2022)* - Comprehensive coverage of color perception - Practical design guidelines - Chapters on color theory and visual encoding ::: ::::
